Spare Parts RTI P-3

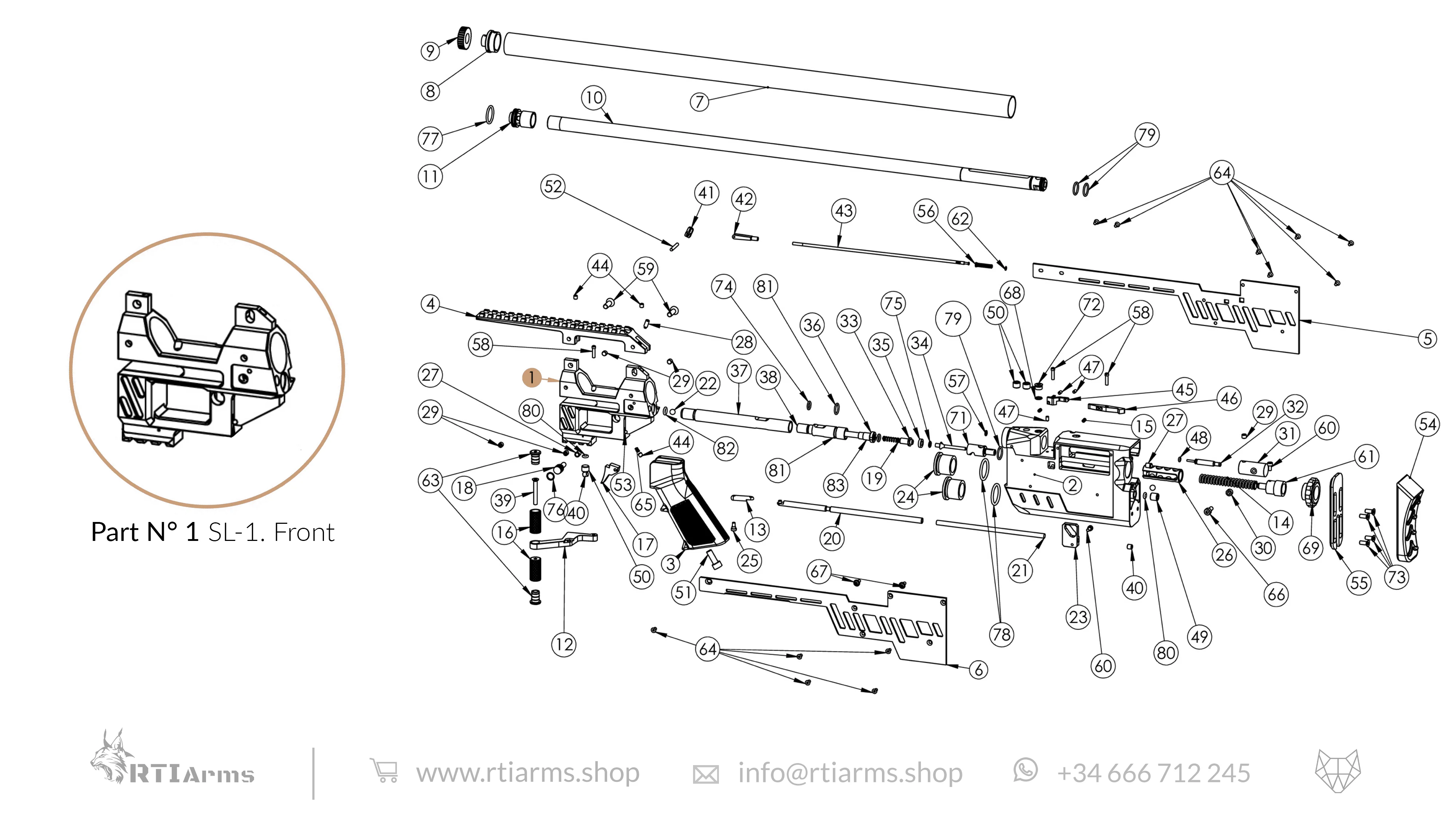

| 1- SL-1. Front (x1) | 47- M3x5 DIN913 (x3) |

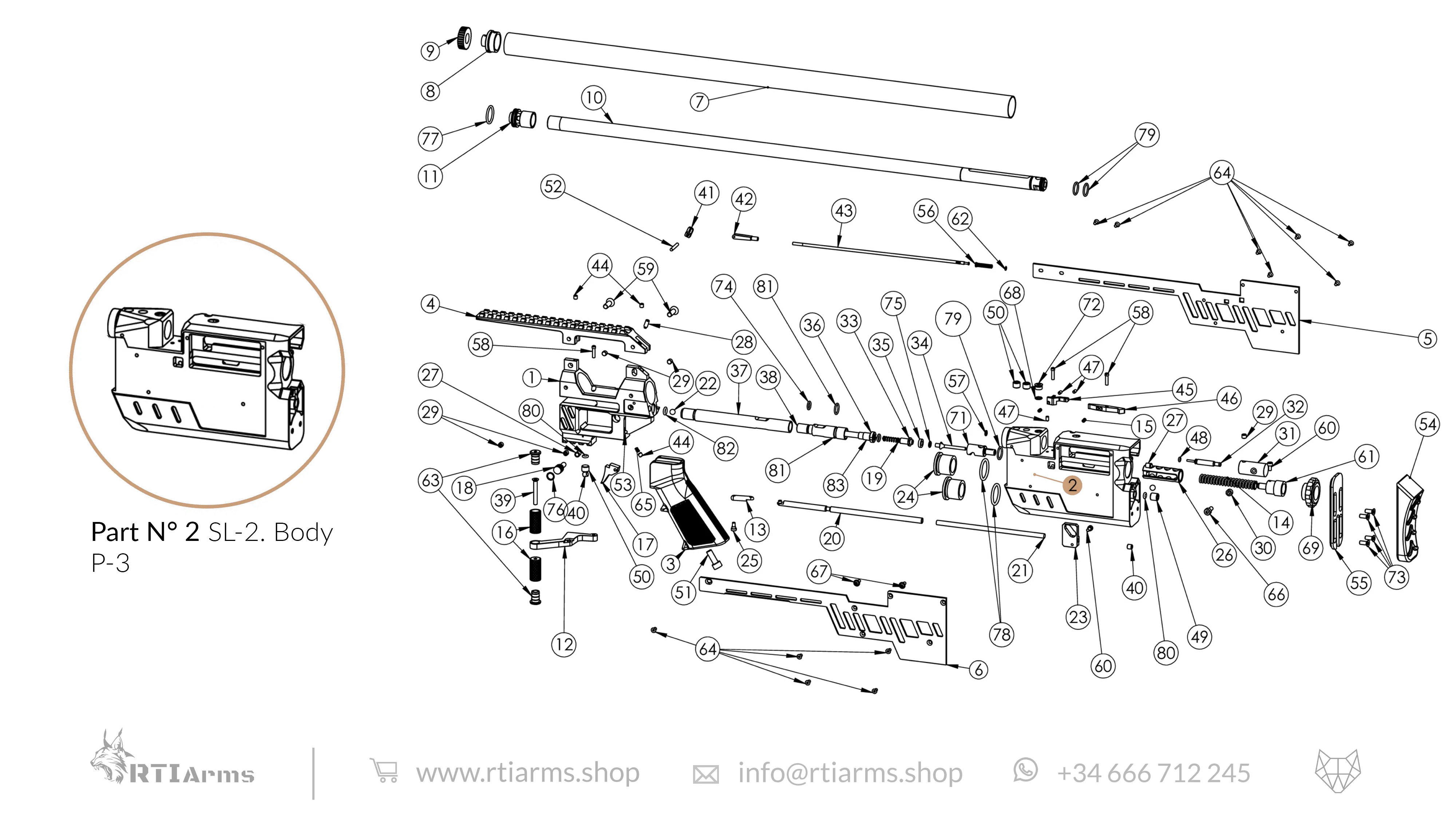

| 2- SL-2. Body P3 (x1) | 48.1- O-ring pellet probe (70N) 1,5x1,5 (Cal .177) (x1) |

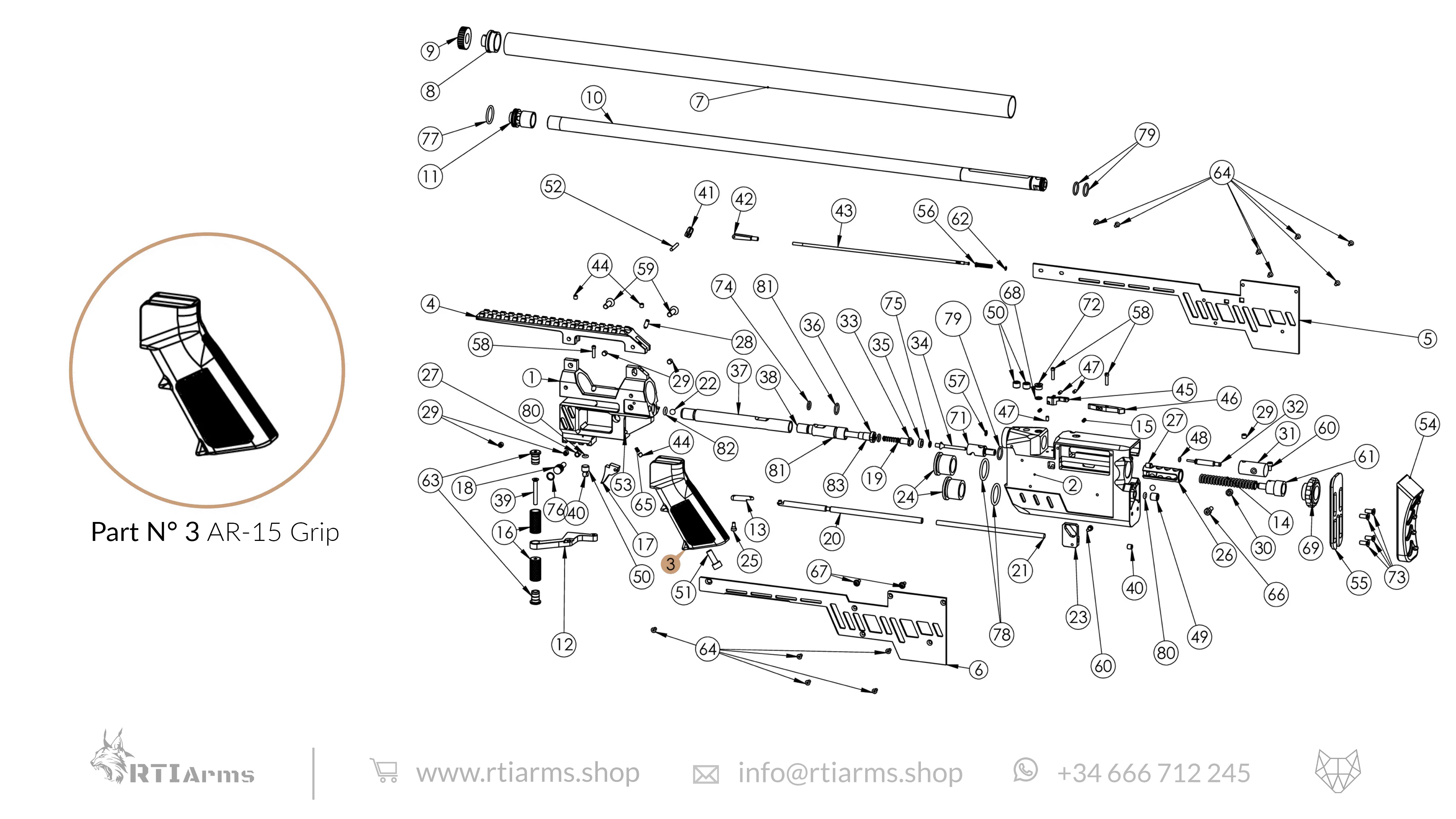

| 3- AR-15 Grip (x1) | 48.2- O-ring pellet probe (70N) 2,5x1,5 (Cal .22) (x1) |

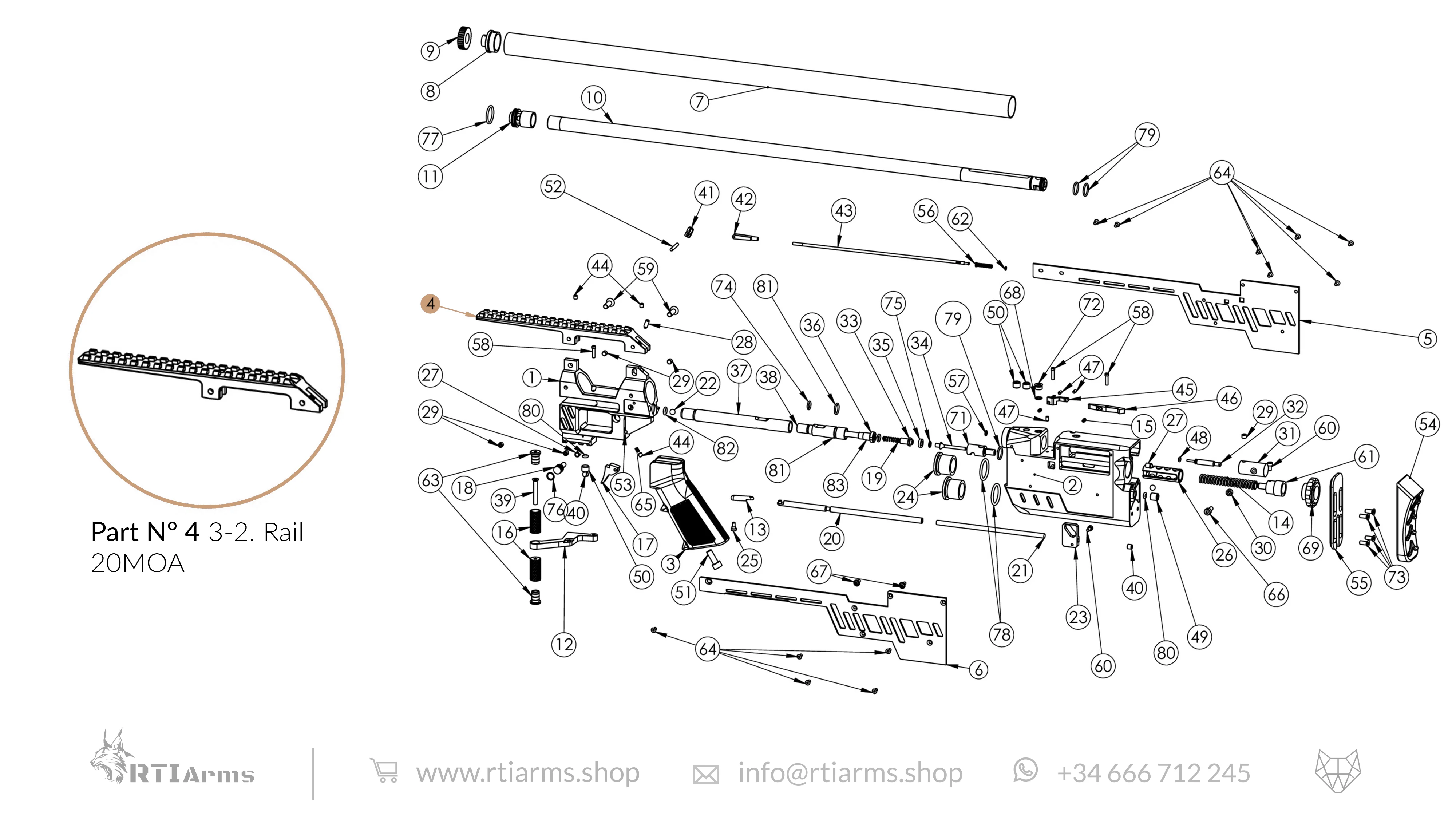

| 4- 3-2. Rail 20MOA (x1) | 48.3- O-ring pellet probe (70N) 3,5x1,5 (Cal .25) (x1) |

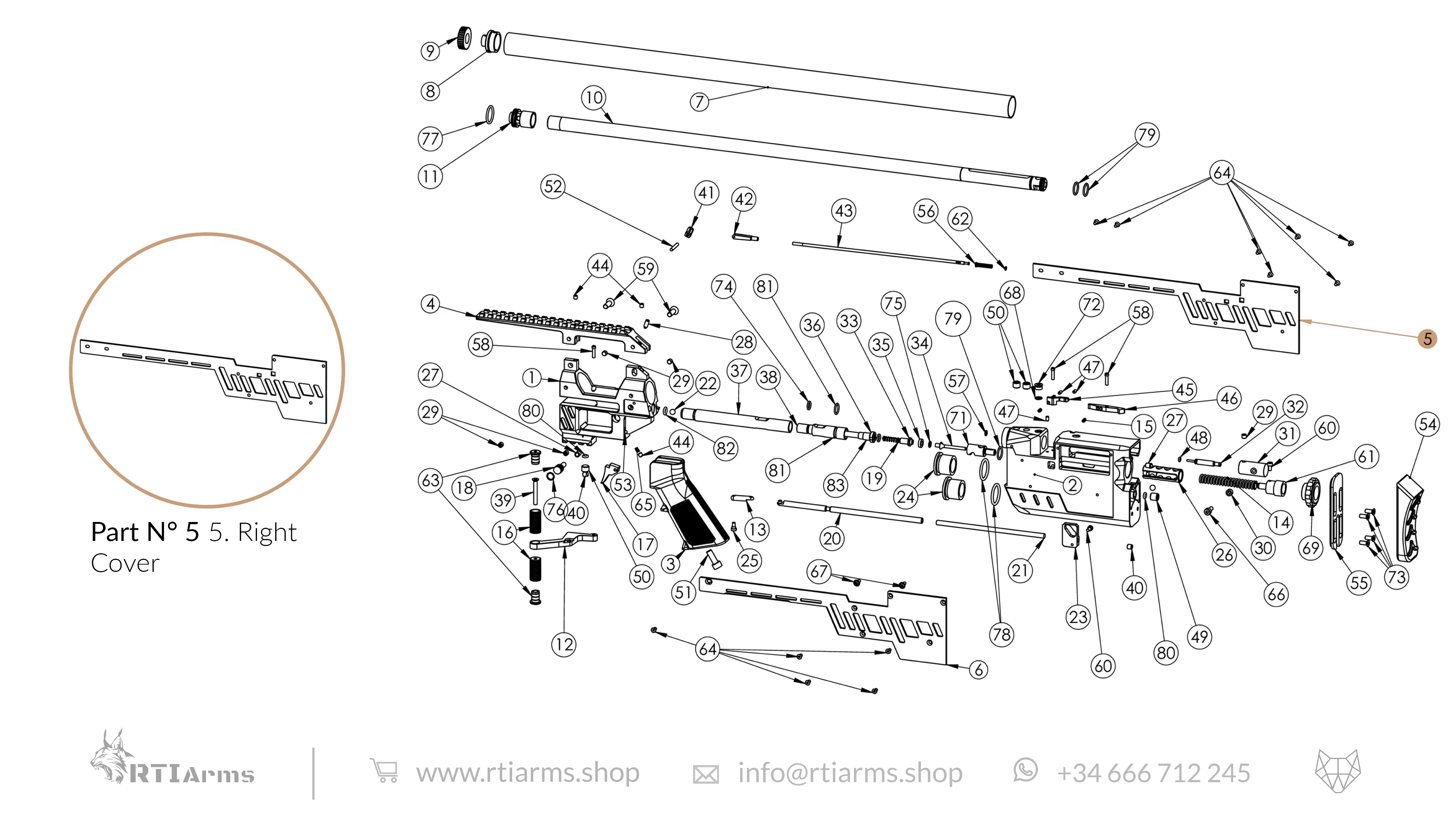

| 5- Right cover (x1) | 48.4- O-ring pellet probe (70N) 5x1,5 (Cal .30) (x1) |

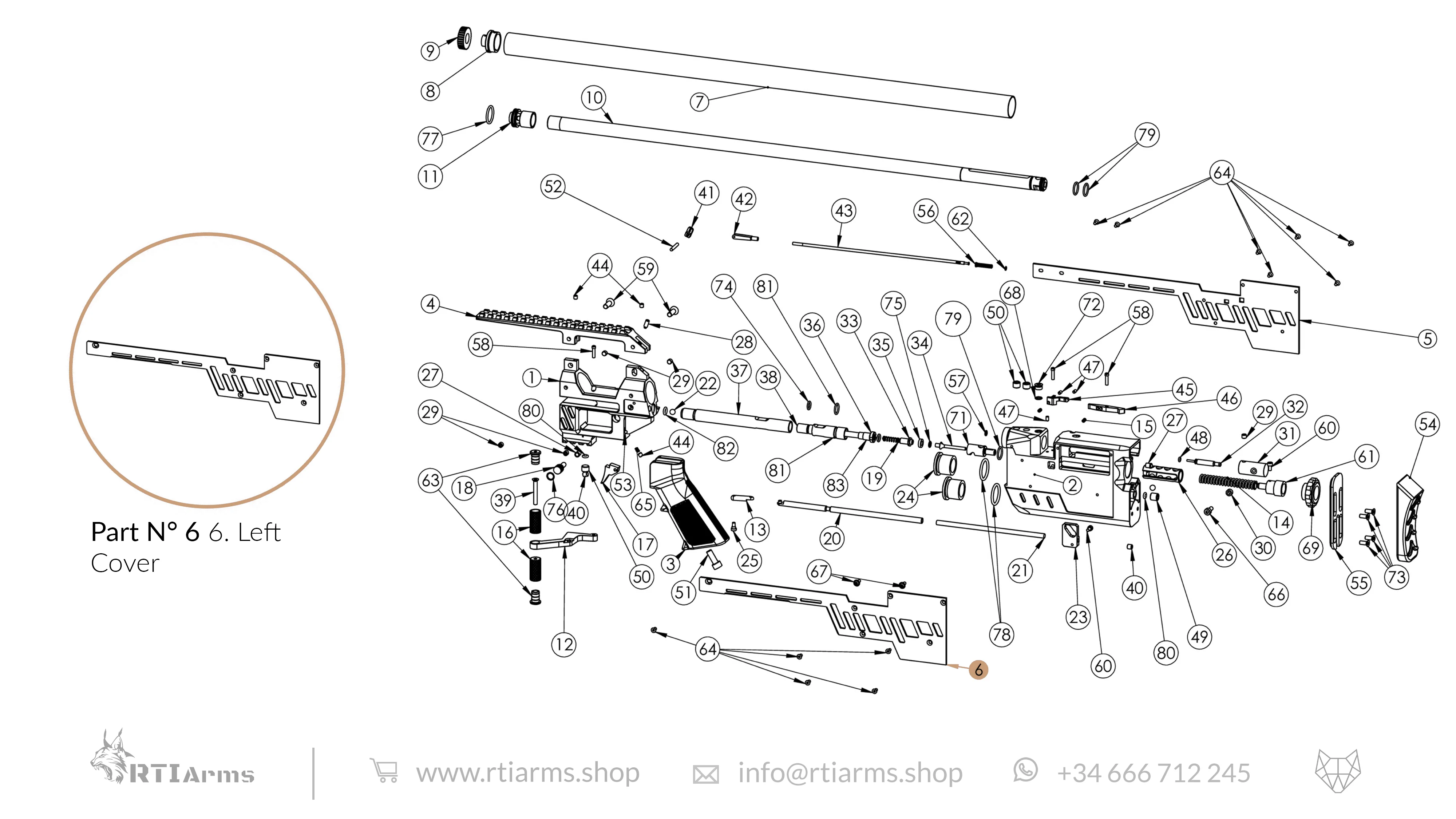

| 6- Left Cover (x1) | 49- M8x8 DIN913 (x1) |
| 7- 7-610. Shroud (x1) | 50- M8x6 DIN913 (x3) |
| 8- Shroud cap (x1) | 51- M6x16 DIN912 (x1) |
| 9- Shroud thread cover (x1) | 52- Trigger axis (x1) |
| 10- Barrel (x1) | 53- Safety ball 3mm (x1) |

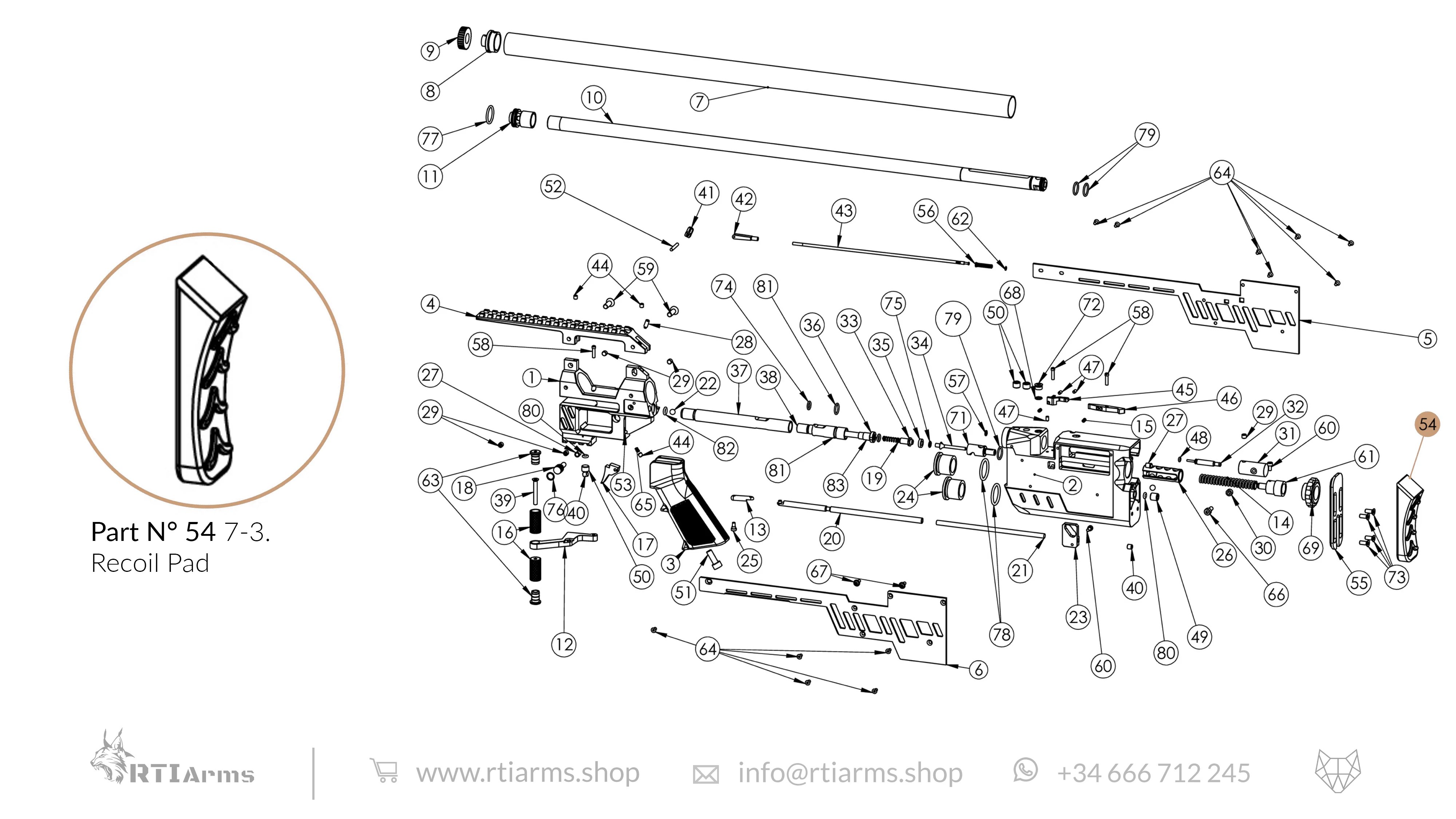

| 11- Muzzle cap (x1) | 54- 7-3. Recoil pad (x1) |

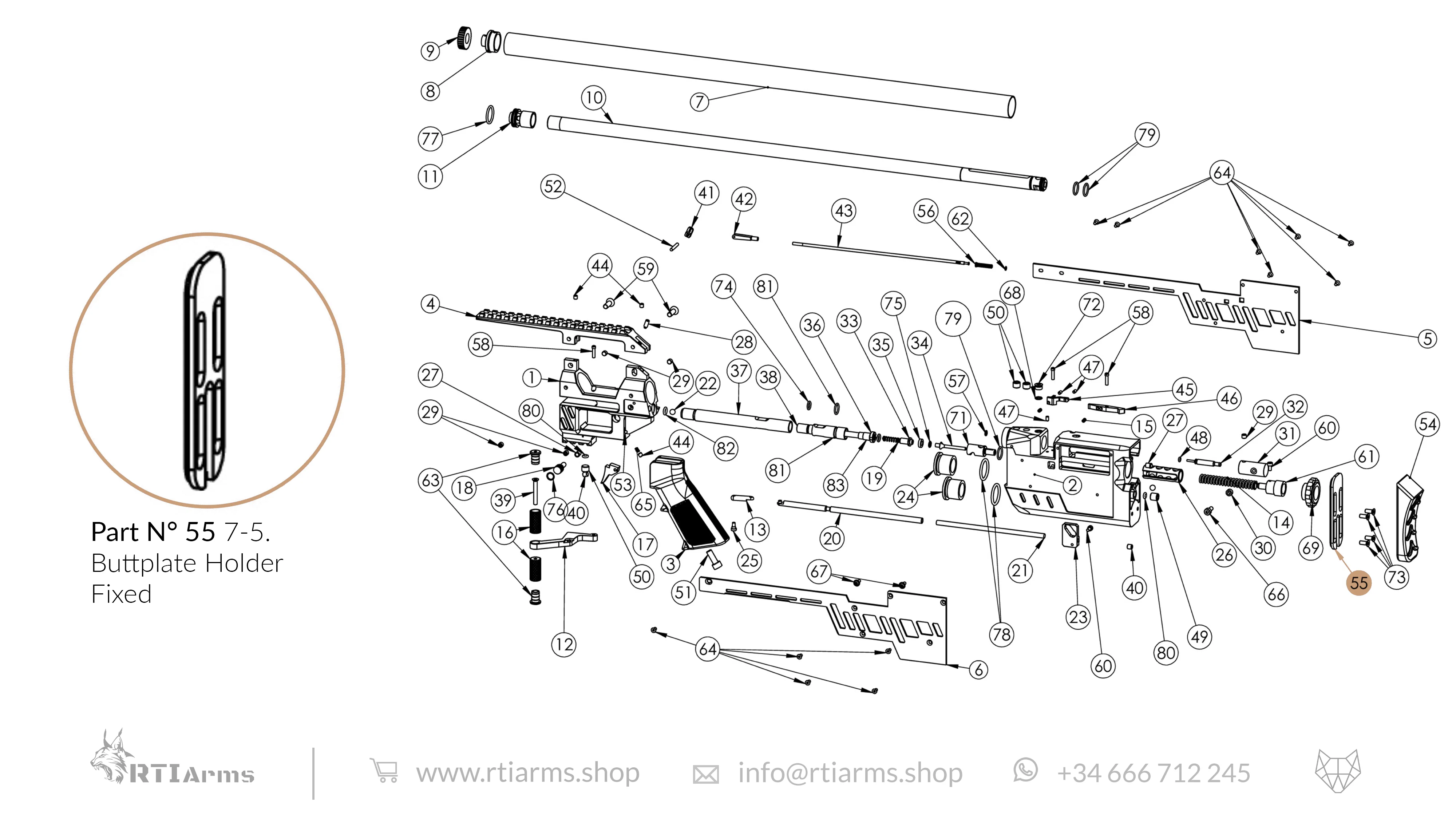

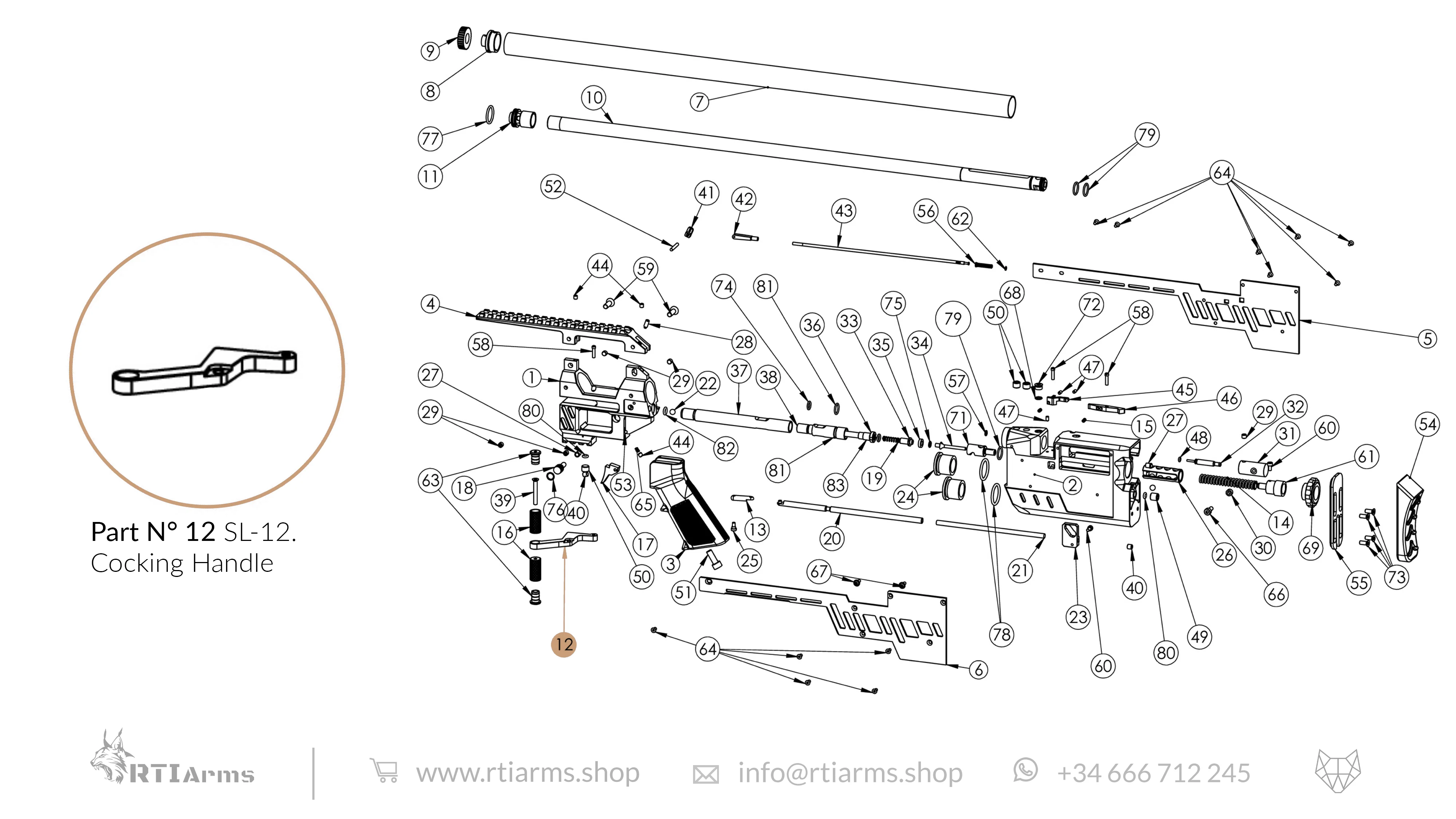

| 12- SL-12. Cocking handle (x1) | 55- 7-5. Buttplate holder fixed (x1) |
| 13- SL-13. Cocking rod link (x1) | 56- Spring 3 (x1) |
| 14- Spring 5 (x1) | 57- O-ring ID 4x1 NBR70 (x1) |
| 15- Spring 1 (x1) | 58- Trigger screw (x3) |

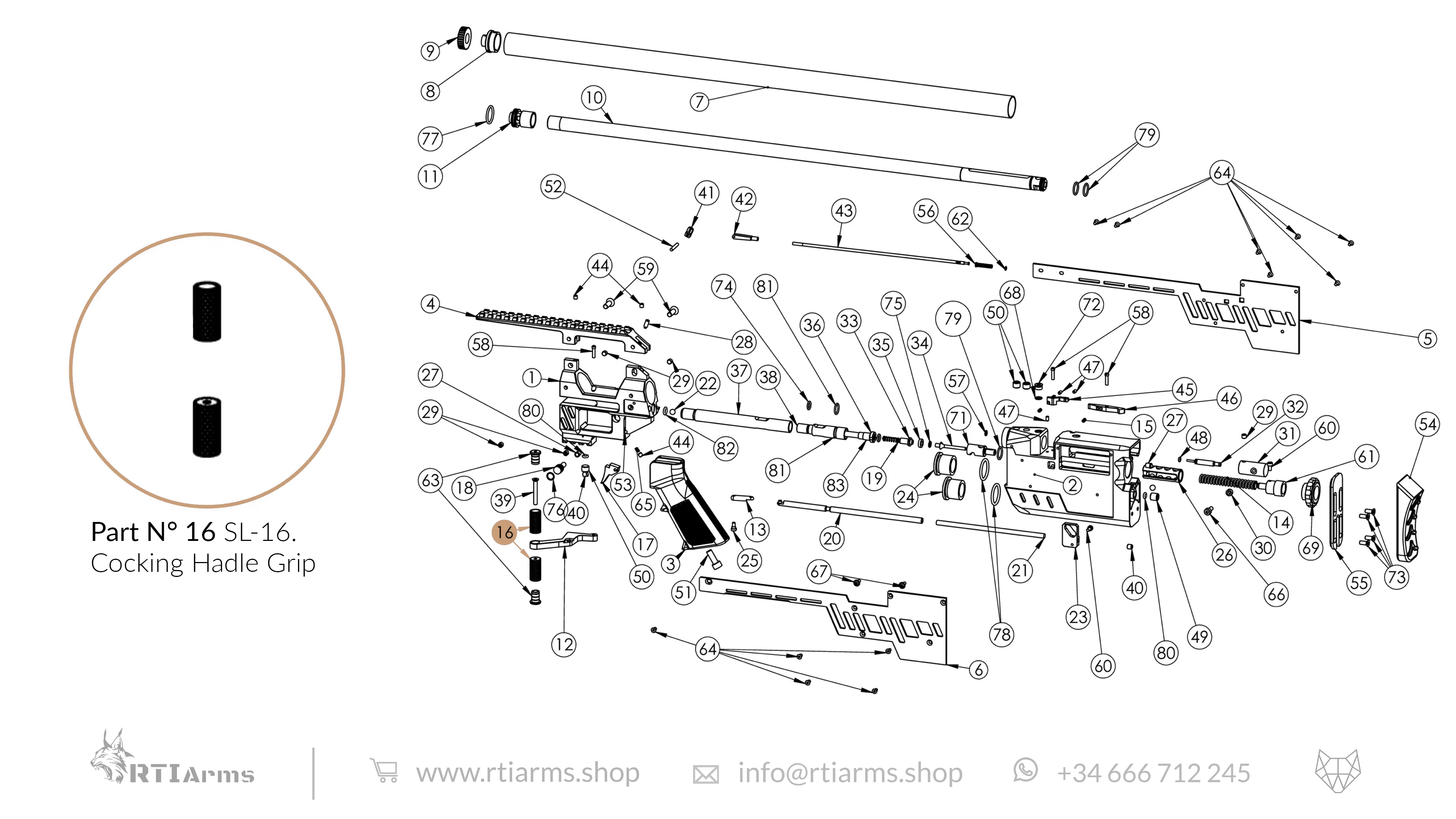

| 16- SL-16. Cocking handle grip (x2) | 59- M5x16 DIN7991 (x2) |
| 17- Trigger blade (x1) | 60- M3x6 DIN912 (x2) |

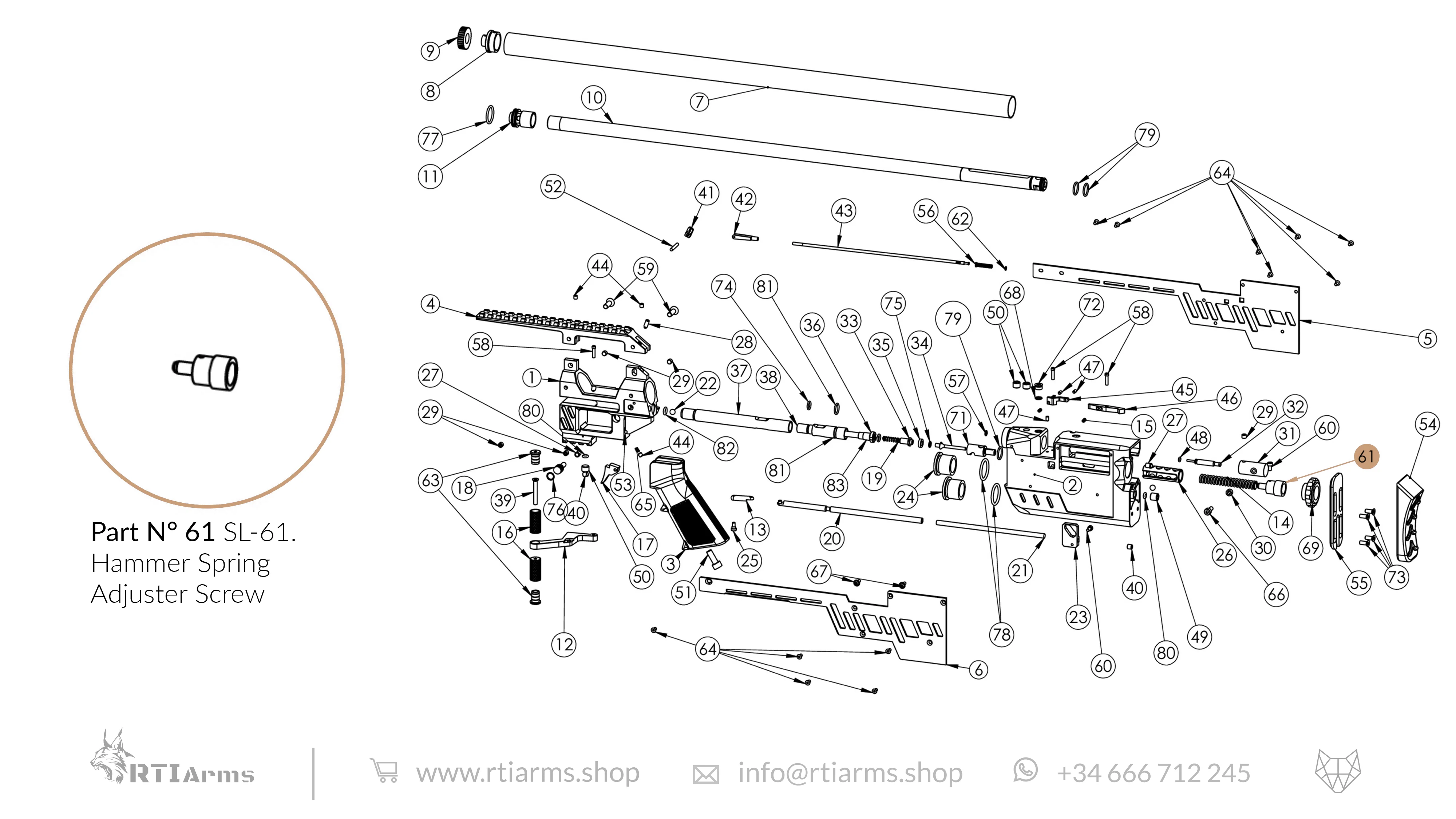

| 18- Safety knob (x1) | 61- SL-61. Hammer spring adjuster screw (x1) |

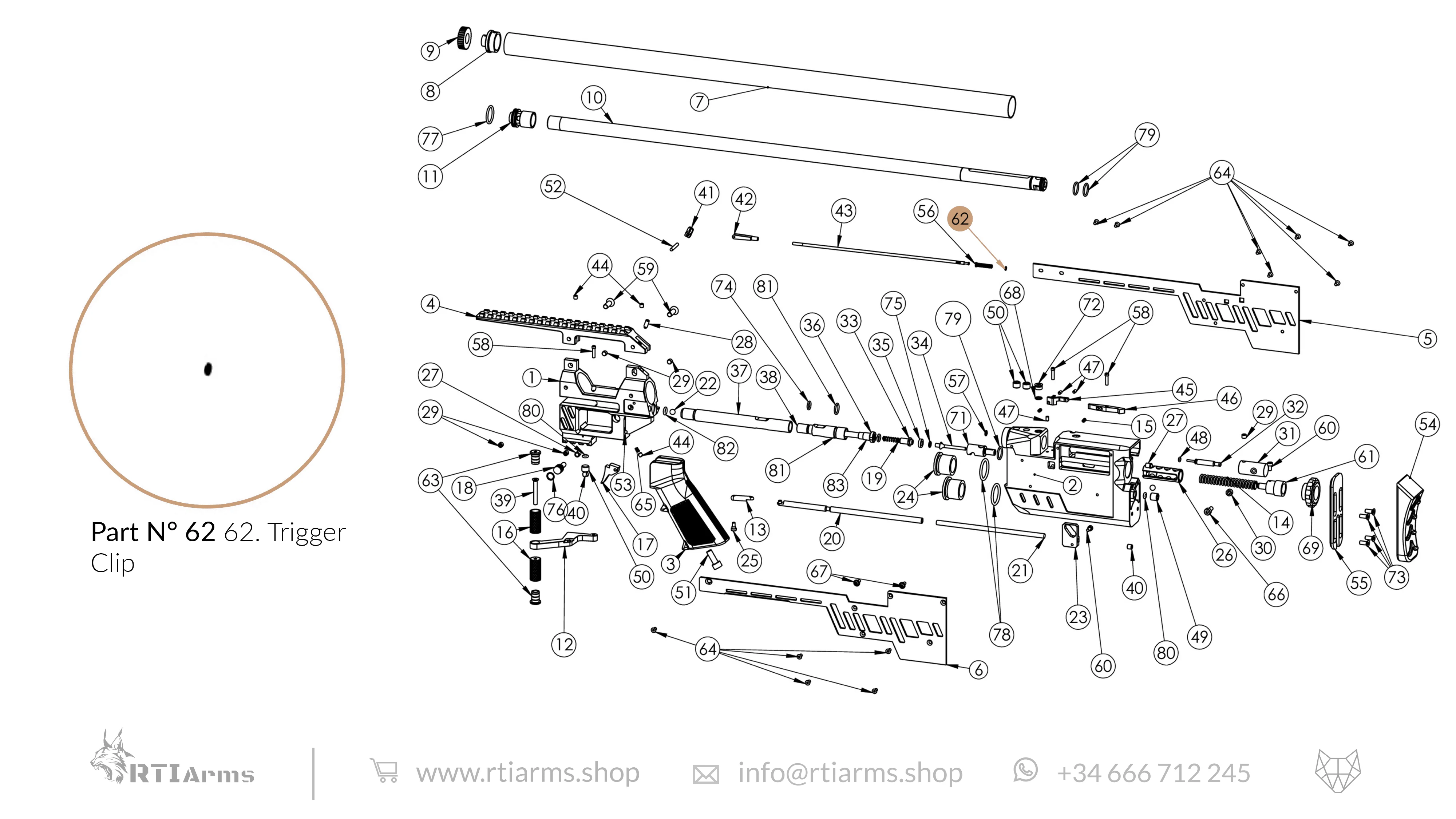

| 19- Spring 7 (x1) | 62- Trigger clip (x1) |

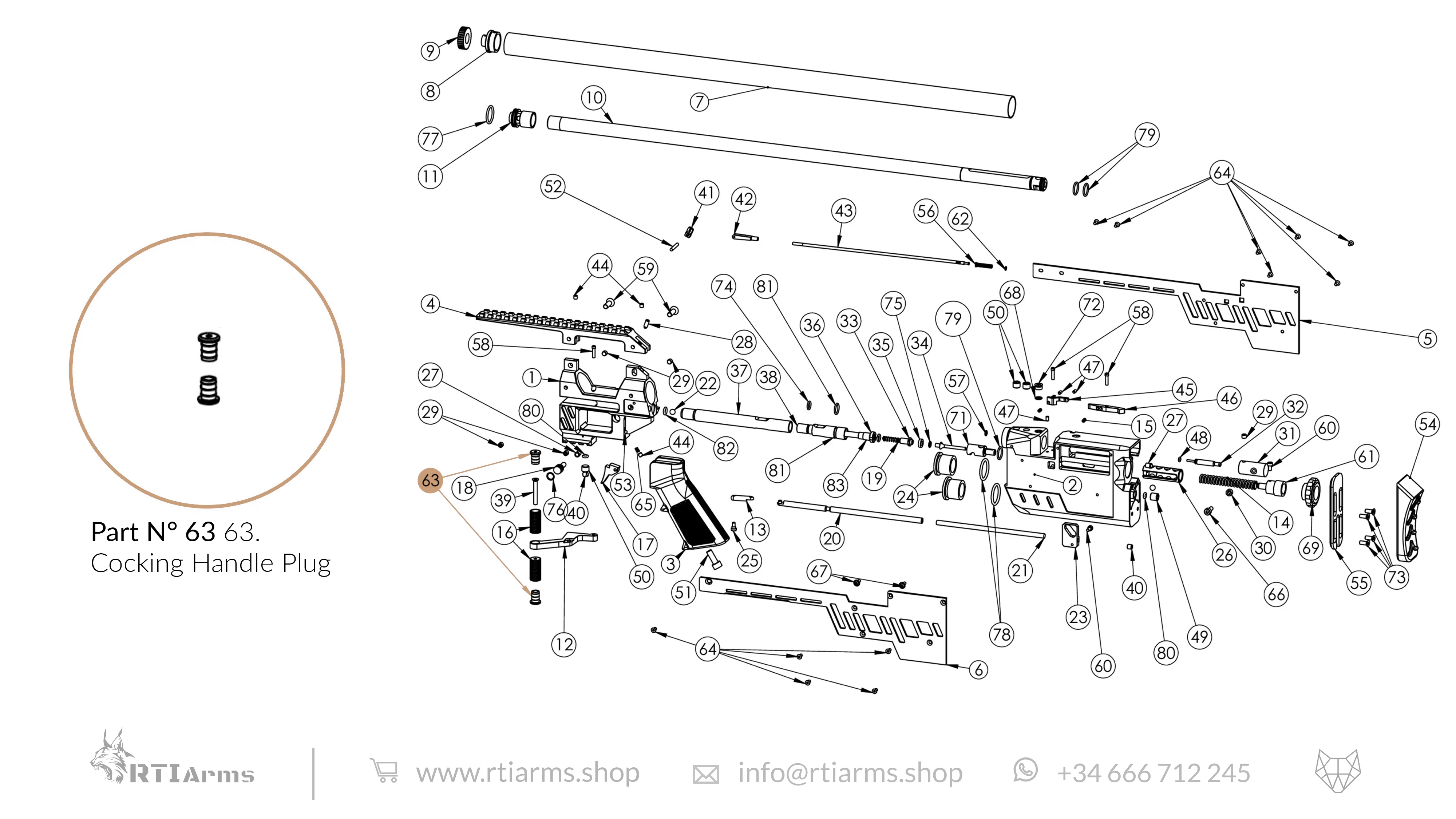

| 20- SL-20. Cocking rod (x1) | 63- Cocking handle plug (x2) |

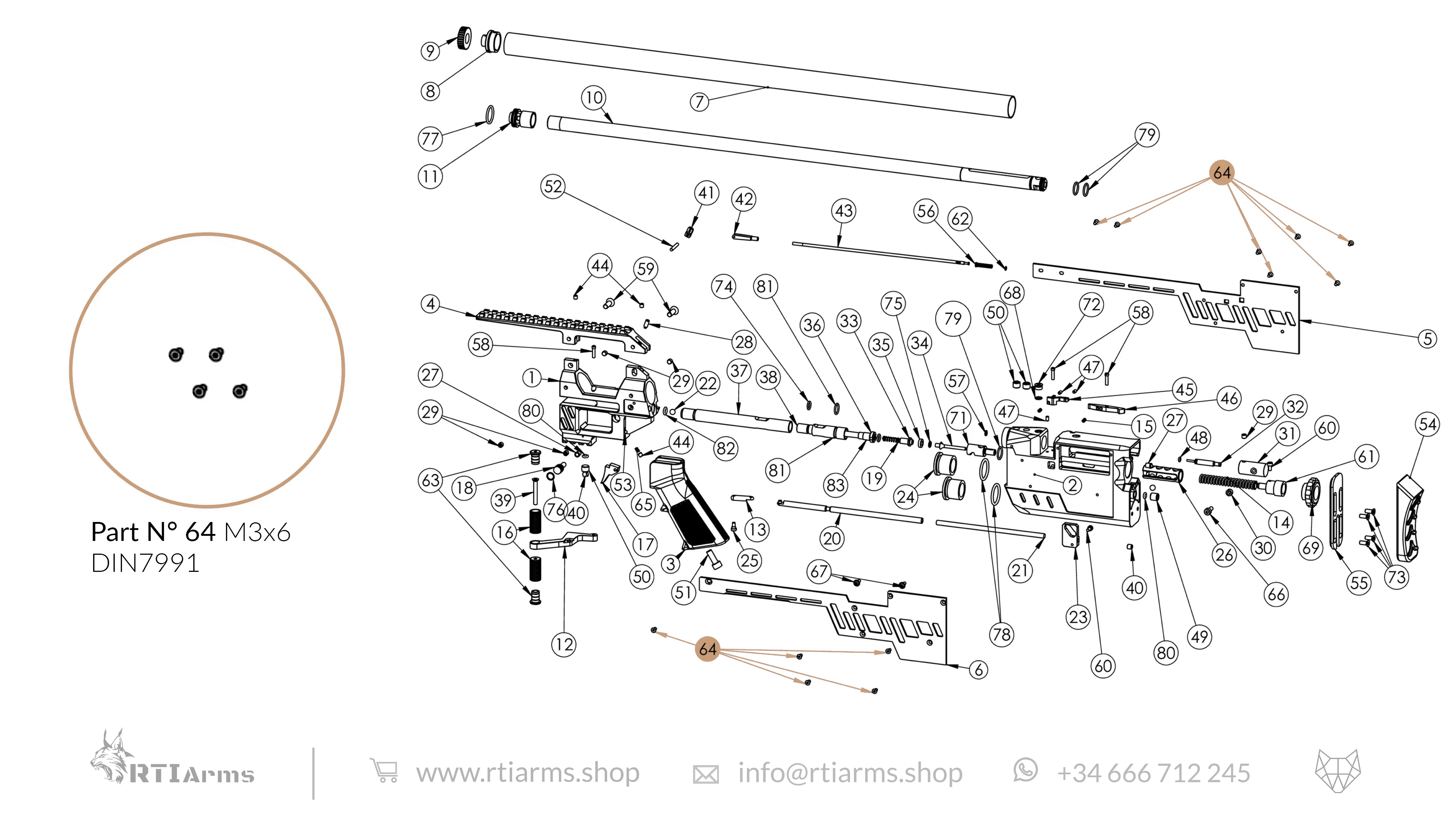

| 21- Cocking rod short (x1) | 64- M3x6 DIN7991 (x12) |

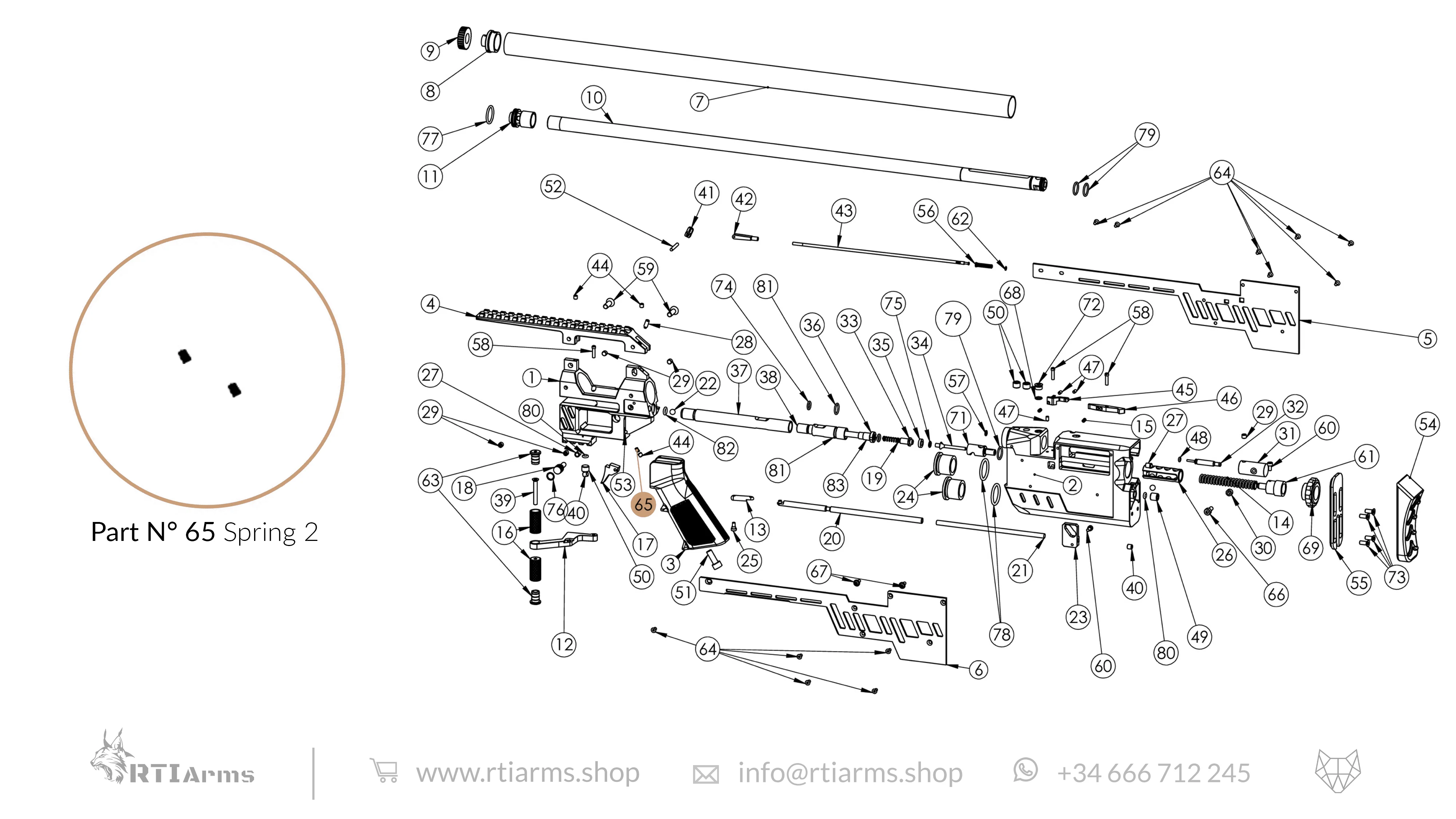

| 22- Ball 6mm (x2) | 65- Spring 2 (x2) |
| 23- SL-23. Slider (x1) | 66- M4x10 DIN912 (x1) |

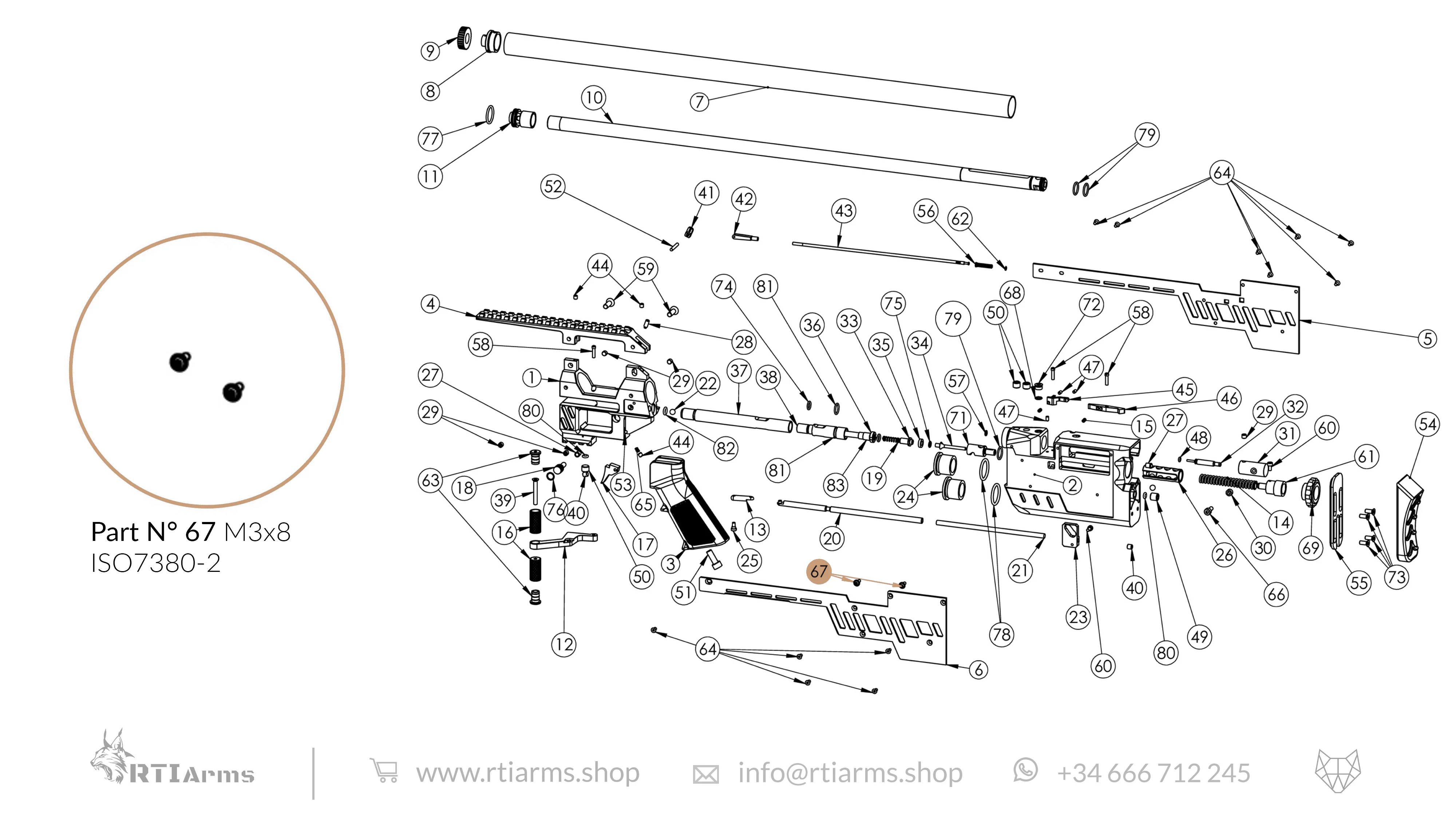

| 24- Plenum cap (x2) | 67- M3x8 ISO7380-2 (x2) |

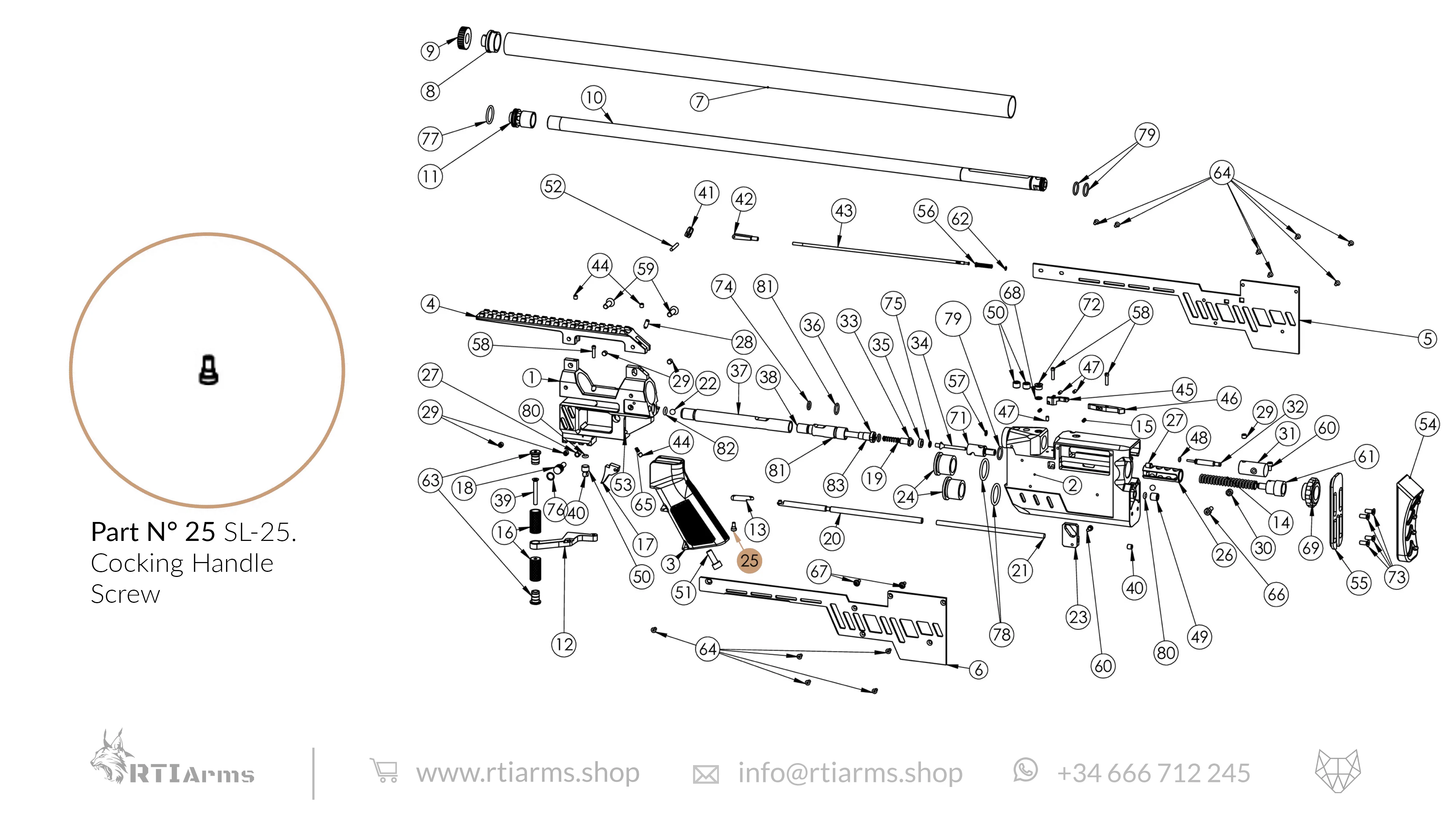

| 25- SL-25. Cocking handle screw (x1) | 68- O-ring ID 6x1 NBR70 (x1) |

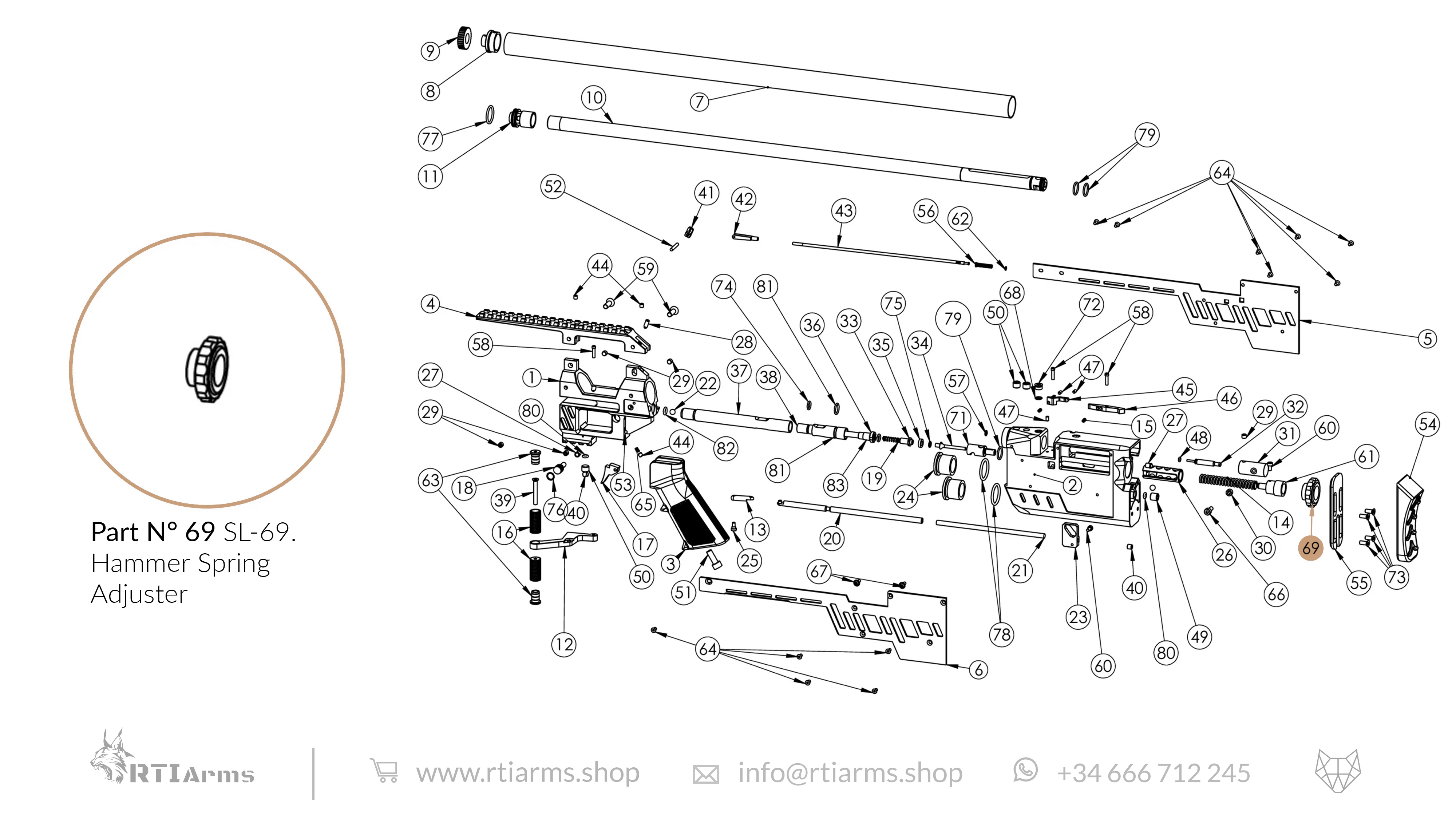

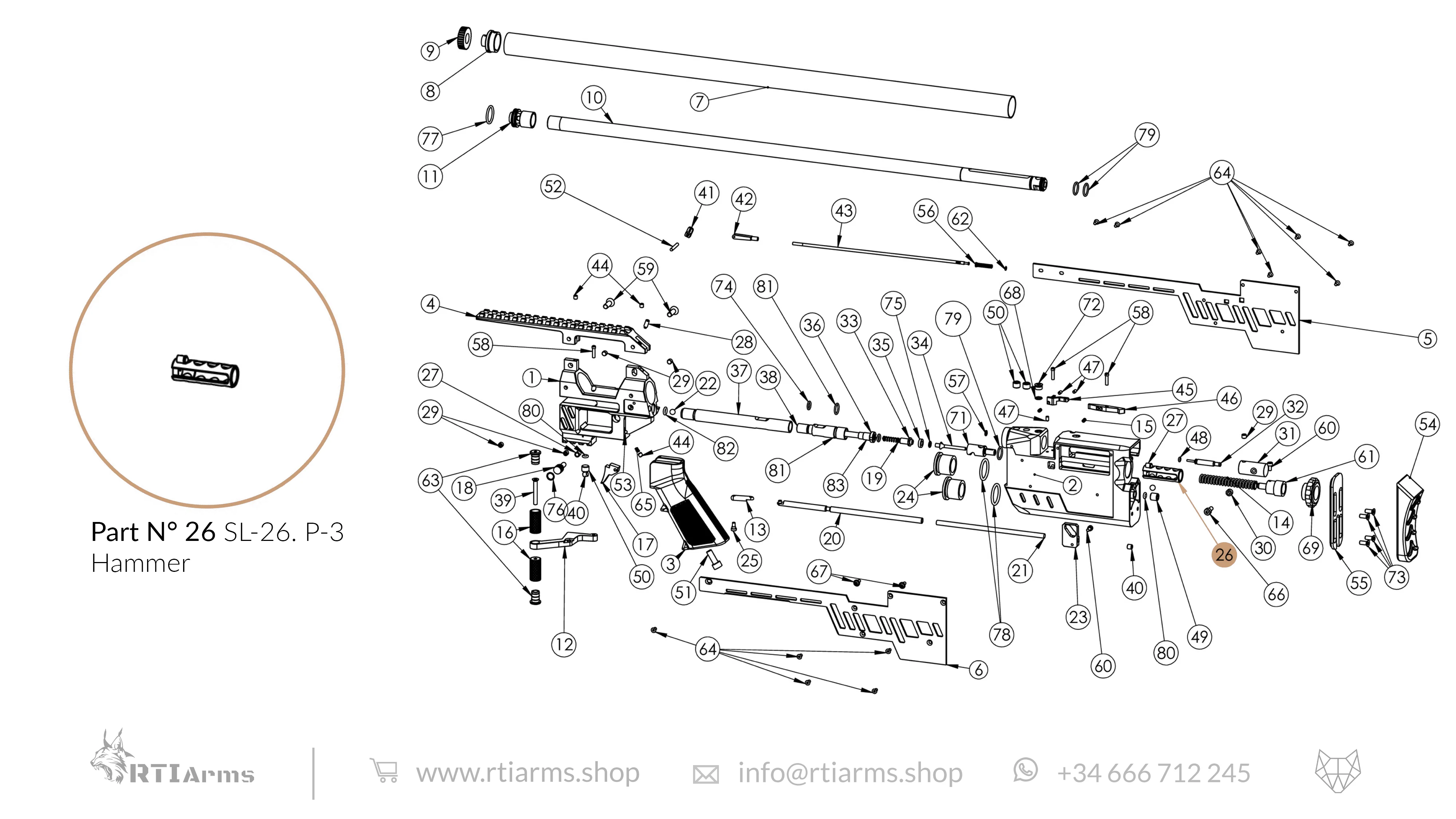

| 26- SL-26. P-3 Hammer (x1) | 69- Gauss spring (x1) |
| 27- Ball detent (x2) | 70- SL-70. Cheek riser (x1) |
| 28- M4x10 DIN913 Plastic tip (x1) | 71- SL-71. Valve seat (x1) |

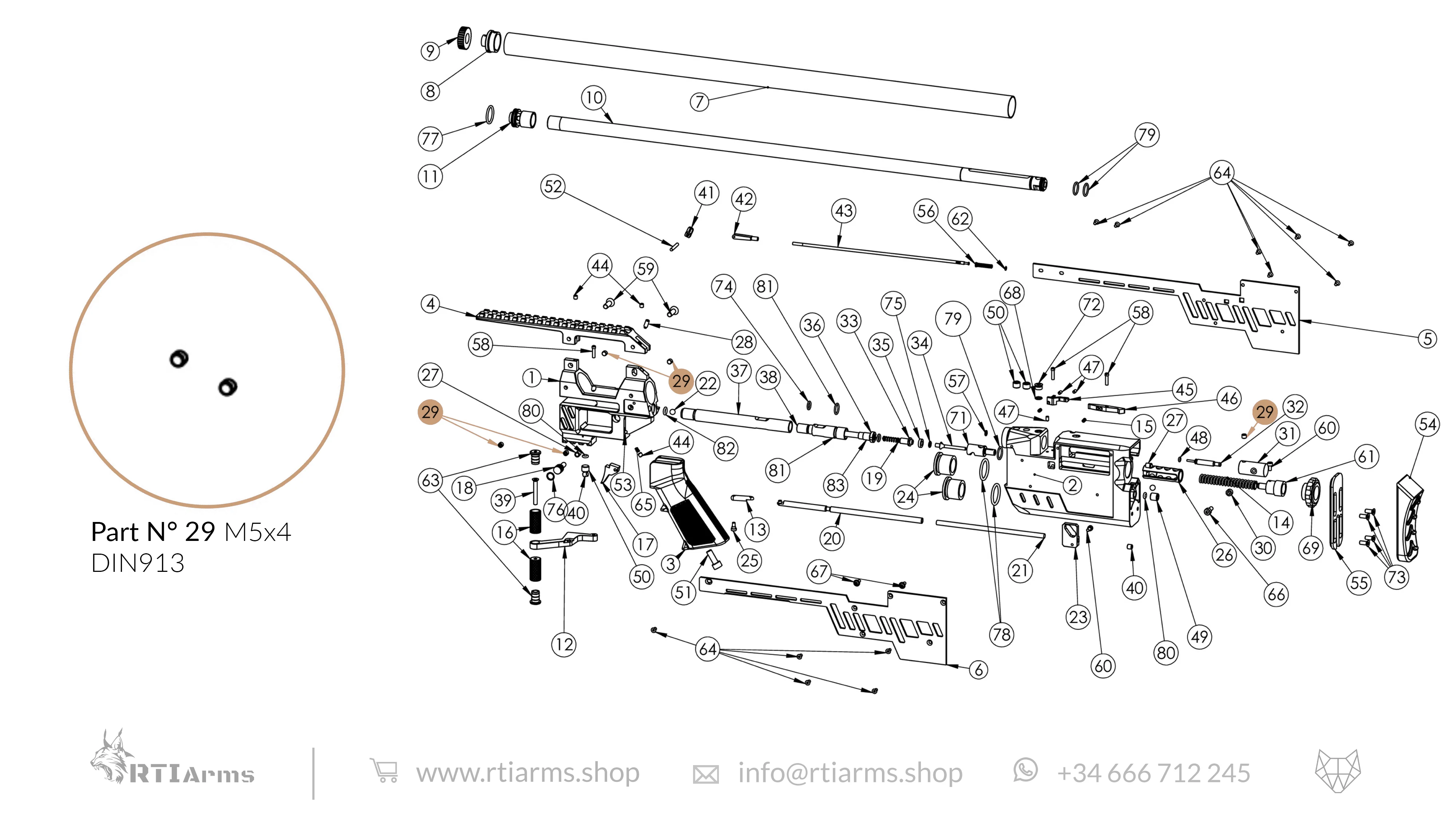

| 29- M5x4 DIN913 (x5) | 72- SL-72. Port plug (x1) |

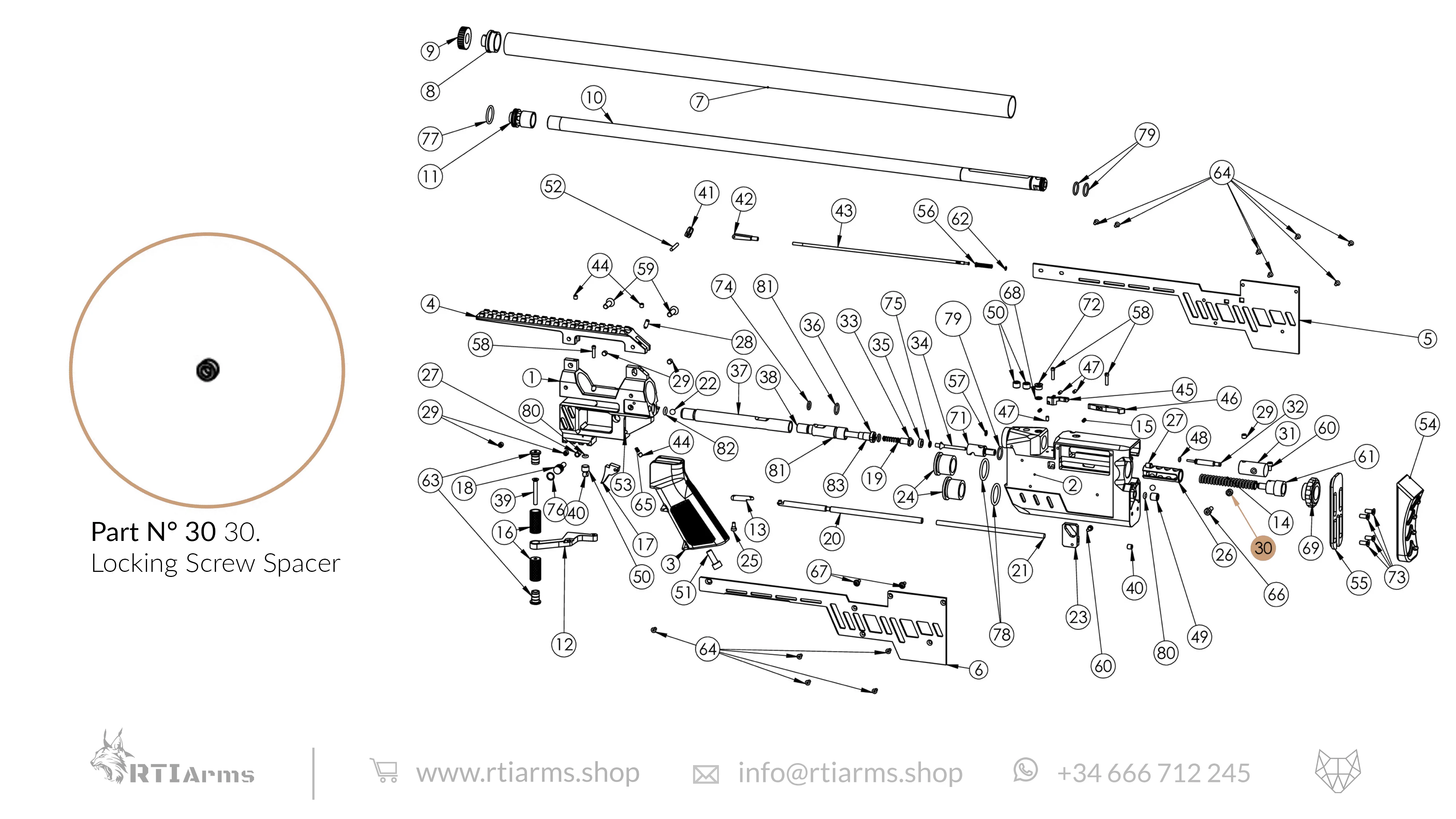

| 30- Locking screw spacer (x1) | 73- M4x10 DIN7991 (x4) |
| 31- Pusher guide (x1) | 74- O-ring ID 7x1.5 NBR70 (x1) |
| 32.A-32.B-32.C-32.D Pellet pusher .22 (x1) | 75- O-ring ID 5x1 NBR70 (x1) |

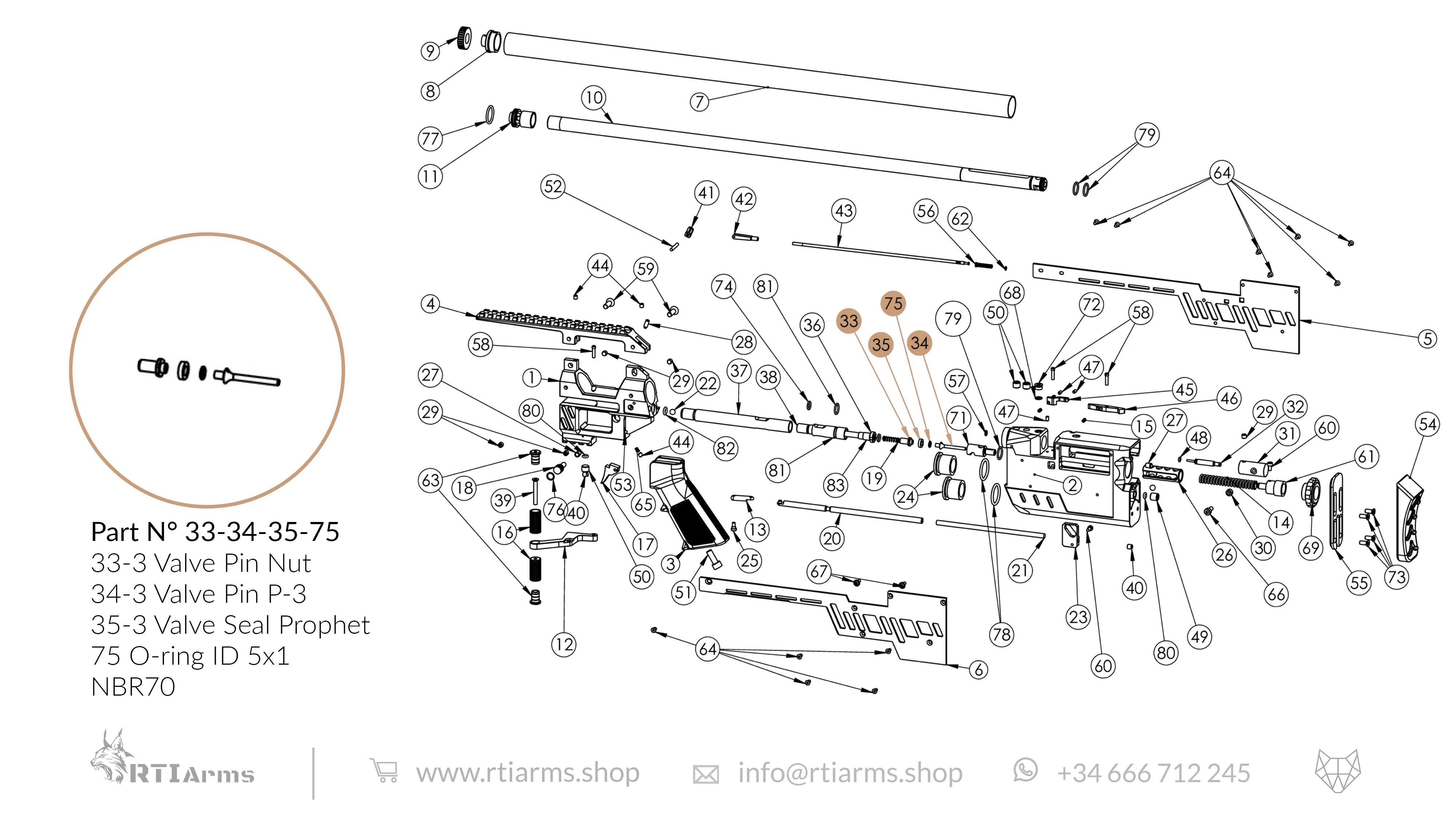

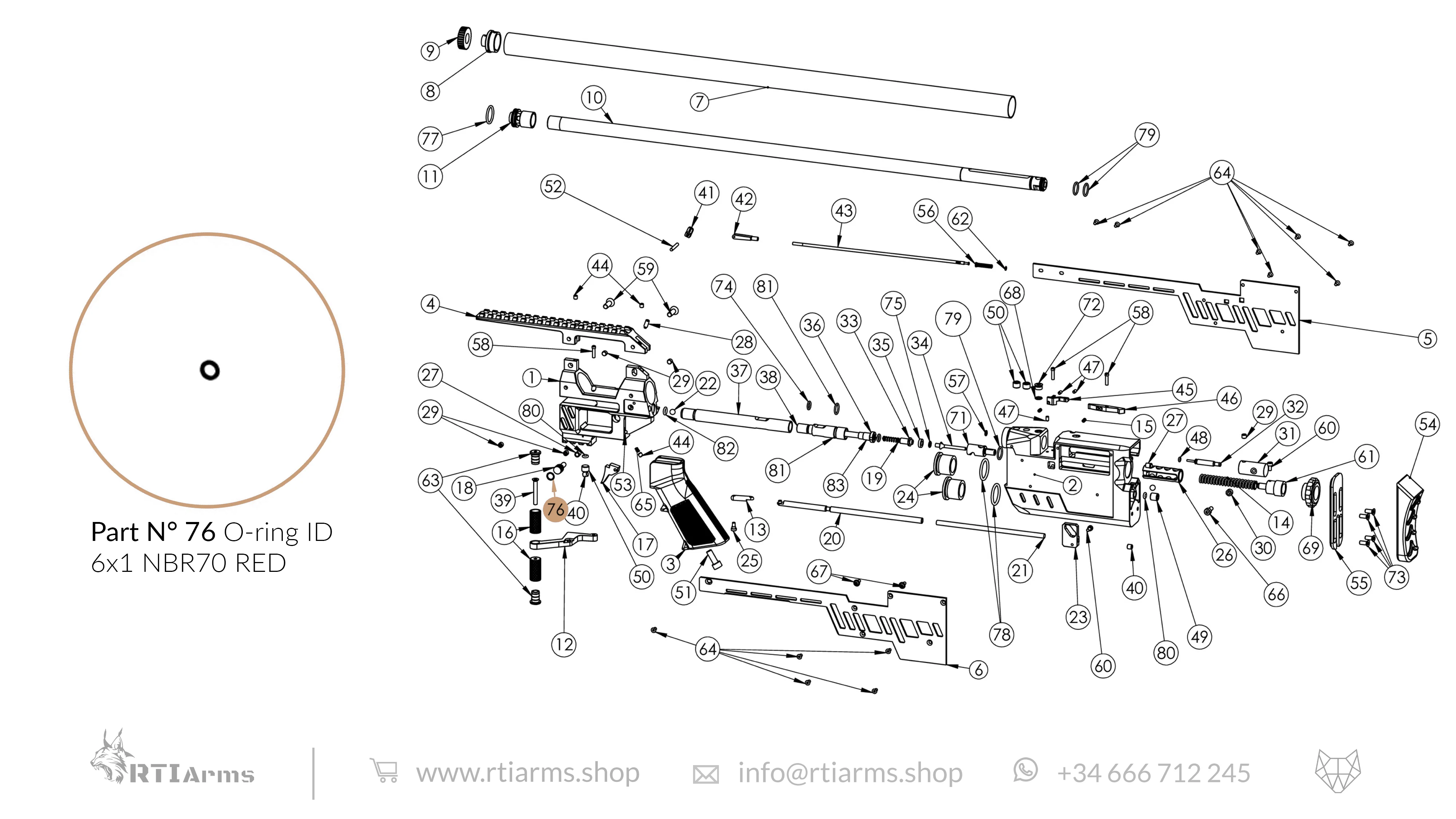

| 33- 33-3. Valve pin nut (x1) | 76- O-ring ID 6x1 NBR70 RED (x1) |

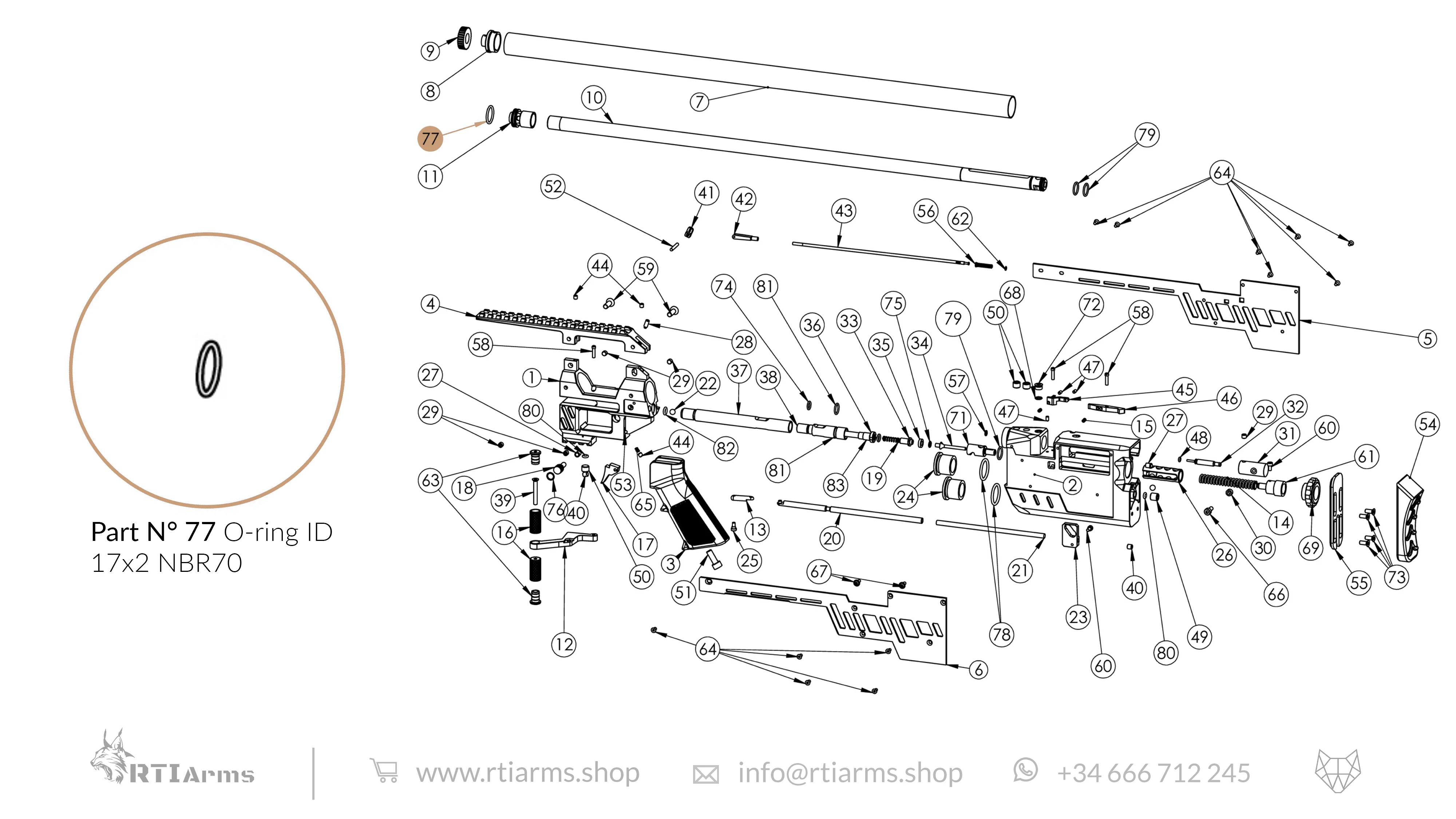

| 34- 34-3. Valve pin P-3 (x1) | 77- O-ring ID 17x2 NBR70 (x1) |
| 35- 35-3. Valve seal Prophet (x1) | 78- O-ring ID 20x2.5 NBR70 (x2) |
| 36- 36-3. Valve cylinder (x1) | 79- O-ring ID 12x1.5 NBR70 (x3) |

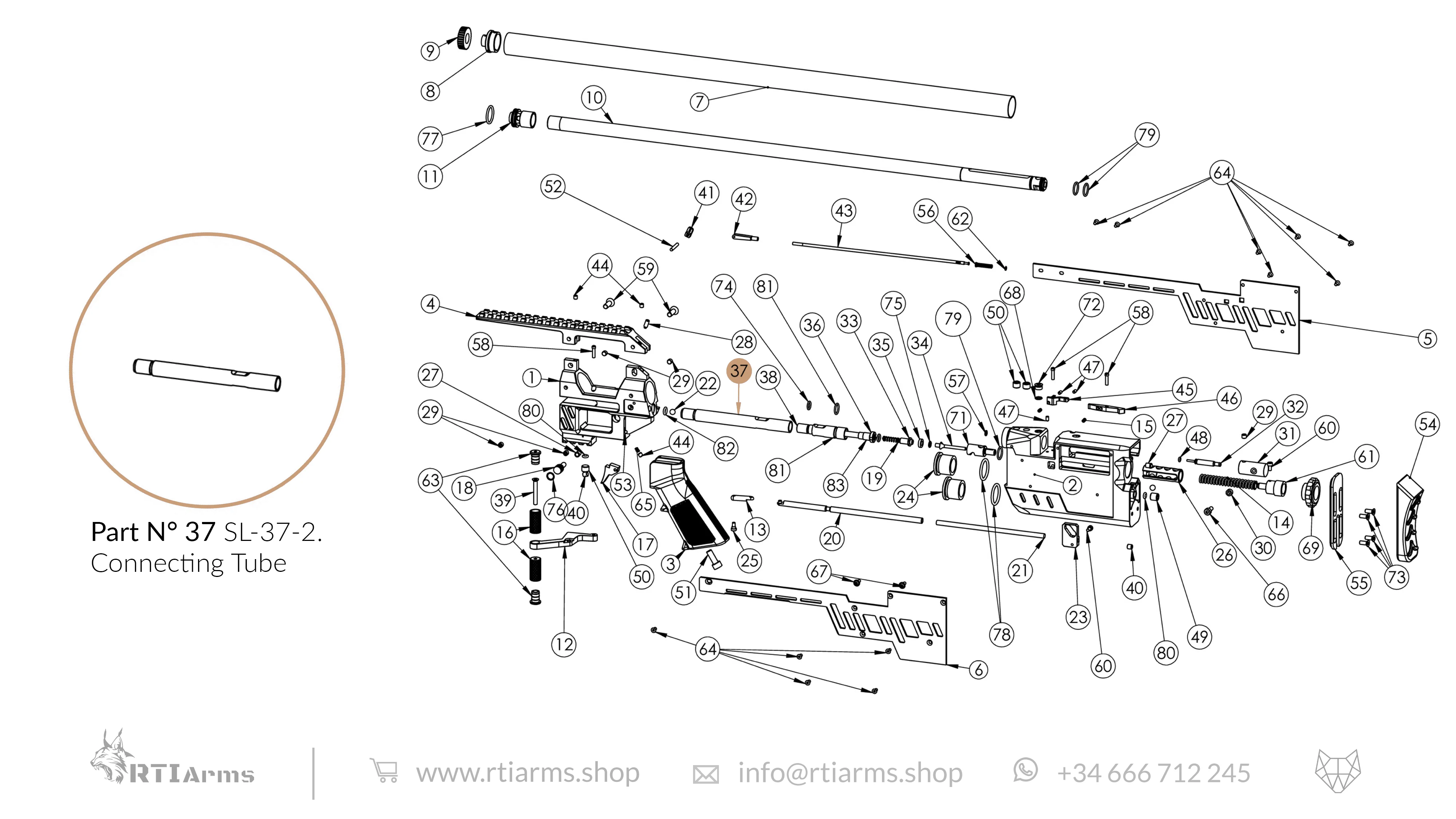

| 37- SL-37-2. Connecting tube (x1) | 80- O-ring ID 3x2 NBR70 (x2) |
| 38- SL-37-1. Retaining tube (x1) | 81- O-ring ID 10x1.5 NBR70 (x1) |
| 39- MA4x30 DIN7991 (x1) | 82- O-ring ID 5x2 NBR70 (x1) |
| 40- M5x5 DIN913 (x2) | 83- O-ring ID 6x1.5 NBR90 (x1) |

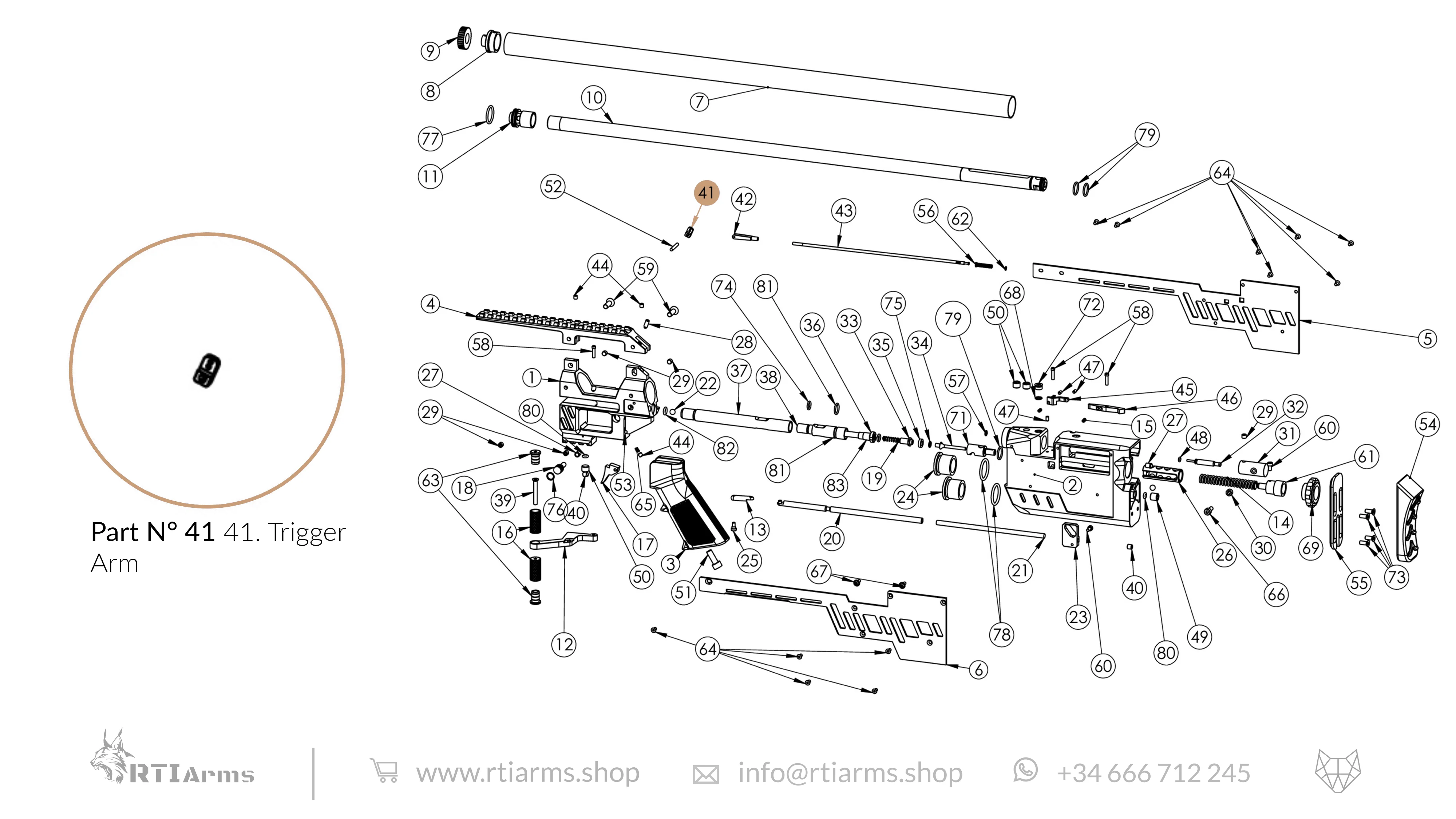

| 41- Trigger arm (x1) | |
| 42- Clevis (x1) | |

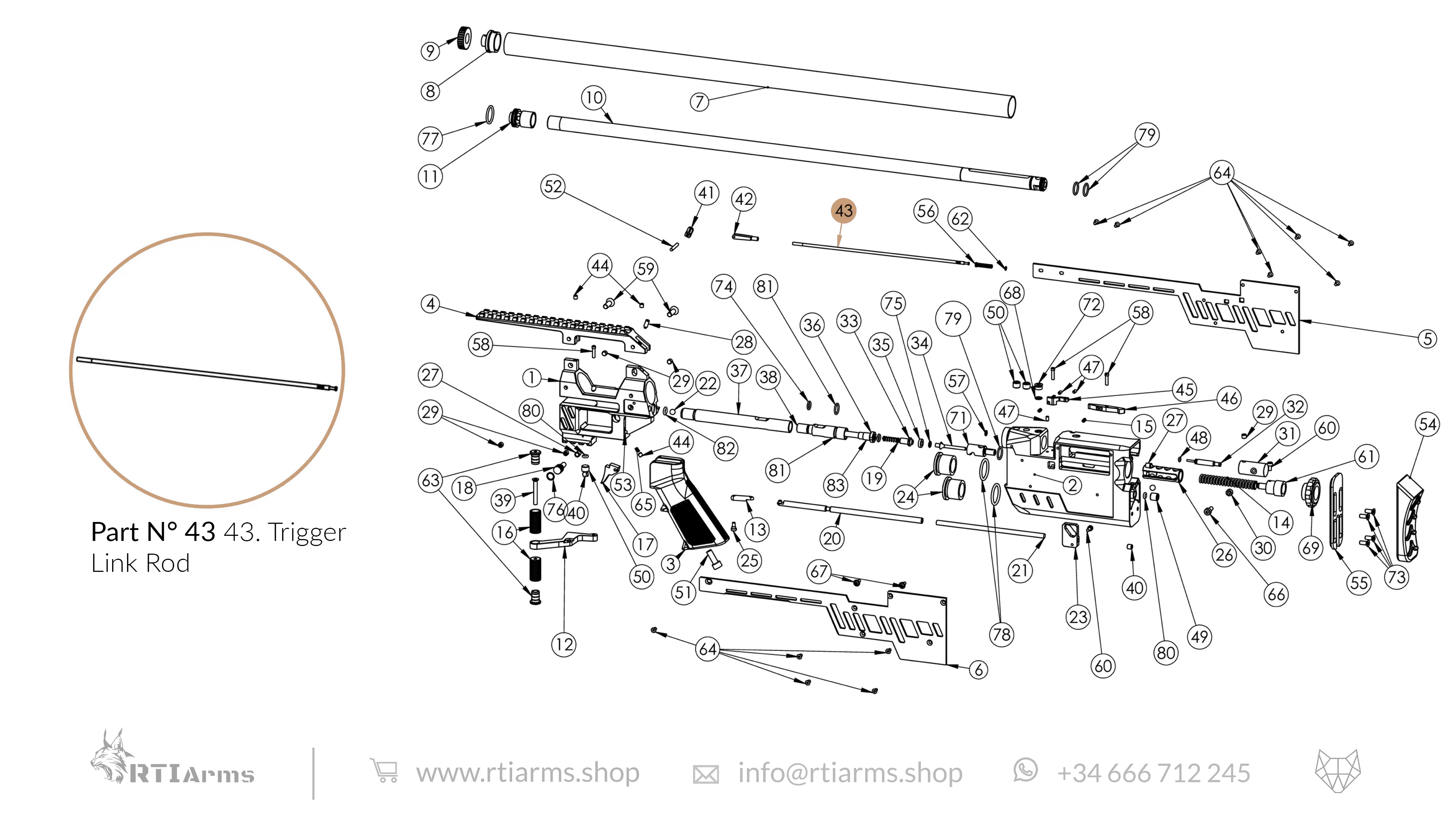

| 43- Trigger link rod (x1) | |
| 44- M4x4 DIN913 (x3) | |
| 45- Trigger sear (x1) | |

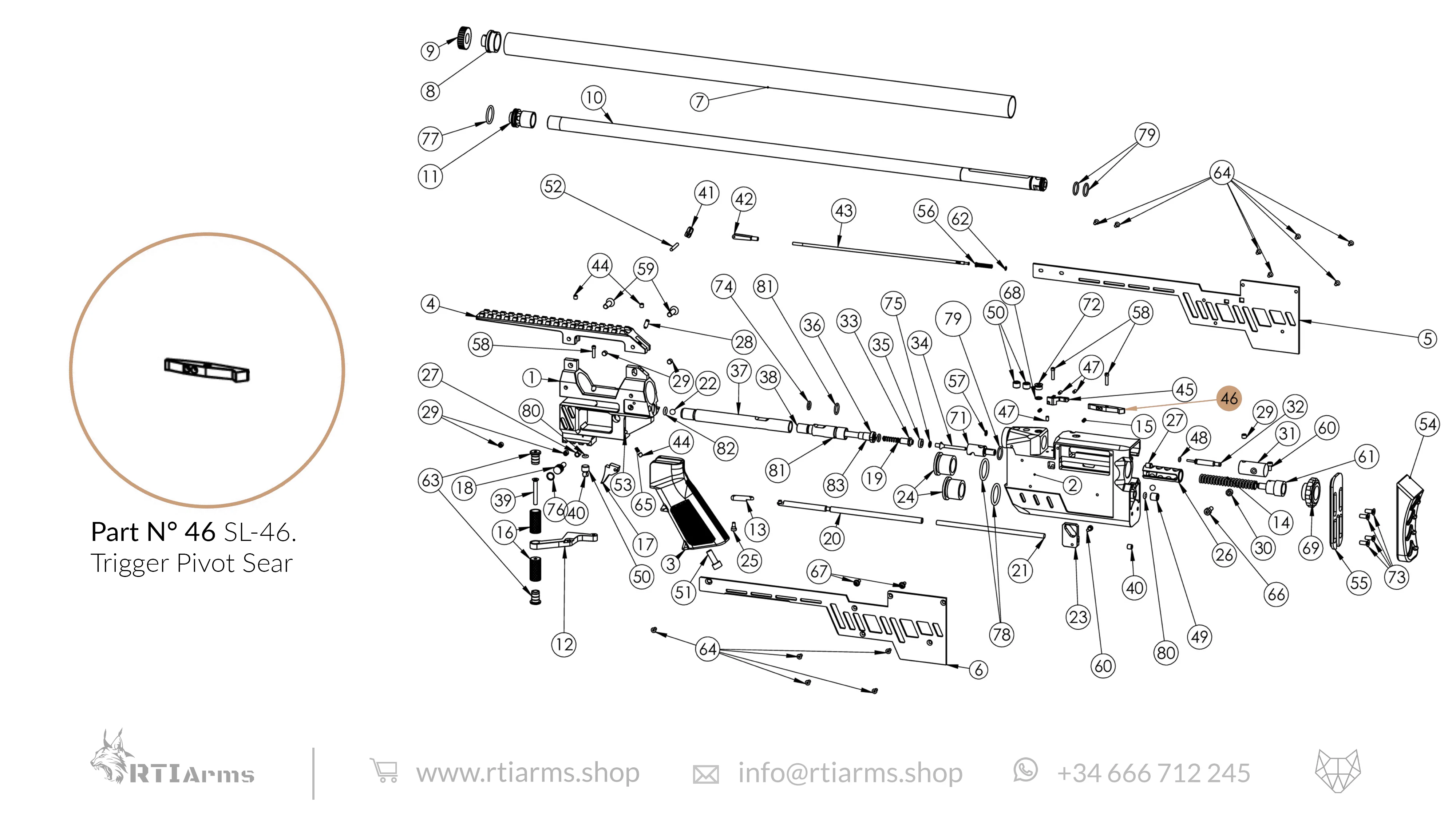

| 46- SL-46. Trigger pivot sear (x1) |
Select REFERENCE
From $1.91
Original: $5.46
-65%Spare Parts RTI P-3—
$5.46
$1.91More Images
Spare Parts RTI P-3
| 1- SL-1. Front (x1) | 47- M3x5 DIN913 (x3) |
| 2- SL-2. Body P3 (x1) | 48.1- O-ring pellet probe (70N) 1,5x1,5 (Cal .177) (x1) |
| 3- AR-15 Grip (x1) | 48.2- O-ring pellet probe (70N) 2,5x1,5 (Cal .22) (x1) |
| 4- 3-2. Rail 20MOA (x1) | 48.3- O-ring pellet probe (70N) 3,5x1,5 (Cal .25) (x1) |
| 5- Right cover (x1) | 48.4- O-ring pellet probe (70N) 5x1,5 (Cal .30) (x1) |
| 6- Left Cover (x1) | 49- M8x8 DIN913 (x1) |
| 7- 7-610. Shroud (x1) | 50- M8x6 DIN913 (x3) |
| 8- Shroud cap (x1) | 51- M6x16 DIN912 (x1) |
| 9- Shroud thread cover (x1) | 52- Trigger axis (x1) |
| 10- Barrel (x1) | 53- Safety ball 3mm (x1) |
| 11- Muzzle cap (x1) | 54- 7-3. Recoil pad (x1) |
| 12- SL-12. Cocking handle (x1) | 55- 7-5. Buttplate holder fixed (x1) |
| 13- SL-13. Cocking rod link (x1) | 56- Spring 3 (x1) |
| 14- Spring 5 (x1) | 57- O-ring ID 4x1 NBR70 (x1) |
| 15- Spring 1 (x1) | 58- Trigger screw (x3) |
| 16- SL-16. Cocking handle grip (x2) | 59- M5x16 DIN7991 (x2) |
| 17- Trigger blade (x1) | 60- M3x6 DIN912 (x2) |
| 18- Safety knob (x1) | 61- SL-61. Hammer spring adjuster screw (x1) |
| 19- Spring 7 (x1) | 62- Trigger clip (x1) |
| 20- SL-20. Cocking rod (x1) | 63- Cocking handle plug (x2) |
| 21- Cocking rod short (x1) | 64- M3x6 DIN7991 (x12) |
| 22- Ball 6mm (x2) | 65- Spring 2 (x2) |
| 23- SL-23. Slider (x1) | 66- M4x10 DIN912 (x1) |
| 24- Plenum cap (x2) | 67- M3x8 ISO7380-2 (x2) |
| 25- SL-25. Cocking handle screw (x1) | 68- O-ring ID 6x1 NBR70 (x1) |
| 26- SL-26. P-3 Hammer (x1) | 69- Gauss spring (x1) |
| 27- Ball detent (x2) | 70- SL-70. Cheek riser (x1) |
| 28- M4x10 DIN913 Plastic tip (x1) | 71- SL-71. Valve seat (x1) |
| 29- M5x4 DIN913 (x5) | 72- SL-72. Port plug (x1) |
| 30- Locking screw spacer (x1) | 73- M4x10 DIN7991 (x4) |
| 31- Pusher guide (x1) | 74- O-ring ID 7x1.5 NBR70 (x1) |
| 32.A-32.B-32.C-32.D Pellet pusher .22 (x1) | 75- O-ring ID 5x1 NBR70 (x1) |
| 33- 33-3. Valve pin nut (x1) | 76- O-ring ID 6x1 NBR70 RED (x1) |
| 34- 34-3. Valve pin P-3 (x1) | 77- O-ring ID 17x2 NBR70 (x1) |
| 35- 35-3. Valve seal Prophet (x1) | 78- O-ring ID 20x2.5 NBR70 (x2) |
| 36- 36-3. Valve cylinder (x1) | 79- O-ring ID 12x1.5 NBR70 (x3) |
| 37- SL-37-2. Connecting tube (x1) | 80- O-ring ID 3x2 NBR70 (x2) |
| 38- SL-37-1. Retaining tube (x1) | 81- O-ring ID 10x1.5 NBR70 (x1) |
| 39- MA4x30 DIN7991 (x1) | 82- O-ring ID 5x2 NBR70 (x1) |
| 40- M5x5 DIN913 (x2) | 83- O-ring ID 6x1.5 NBR90 (x1) |
| 41- Trigger arm (x1) | |
| 42- Clevis (x1) | |
| 43- Trigger link rod (x1) | |
| 44- M4x4 DIN913 (x3) | |
| 45- Trigger sear (x1) | |
| 46- SL-46. Trigger pivot sear (x1) |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| 1- SL-1. Front (x1) | 47- M3x5 DIN913 (x3) |
| 2- SL-2. Body P3 (x1) | 48.1- O-ring pellet probe (70N) 1,5x1,5 (Cal .177) (x1) |
| 3- AR-15 Grip (x1) | 48.2- O-ring pellet probe (70N) 2,5x1,5 (Cal .22) (x1) |
| 4- 3-2. Rail 20MOA (x1) | 48.3- O-ring pellet probe (70N) 3,5x1,5 (Cal .25) (x1) |
| 5- Right cover (x1) | 48.4- O-ring pellet probe (70N) 5x1,5 (Cal .30) (x1) |
| 6- Left Cover (x1) | 49- M8x8 DIN913 (x1) |
| 7- 7-610. Shroud (x1) | 50- M8x6 DIN913 (x3) |
| 8- Shroud cap (x1) | 51- M6x16 DIN912 (x1) |
| 9- Shroud thread cover (x1) | 52- Trigger axis (x1) |
| 10- Barrel (x1) | 53- Safety ball 3mm (x1) |
| 11- Muzzle cap (x1) | 54- 7-3. Recoil pad (x1) |
| 12- SL-12. Cocking handle (x1) | 55- 7-5. Buttplate holder fixed (x1) |
| 13- SL-13. Cocking rod link (x1) | 56- Spring 3 (x1) |
| 14- Spring 5 (x1) | 57- O-ring ID 4x1 NBR70 (x1) |
| 15- Spring 1 (x1) | 58- Trigger screw (x3) |
| 16- SL-16. Cocking handle grip (x2) | 59- M5x16 DIN7991 (x2) |
| 17- Trigger blade (x1) | 60- M3x6 DIN912 (x2) |
| 18- Safety knob (x1) | 61- SL-61. Hammer spring adjuster screw (x1) |
| 19- Spring 7 (x1) | 62- Trigger clip (x1) |
| 20- SL-20. Cocking rod (x1) | 63- Cocking handle plug (x2) |
| 21- Cocking rod short (x1) | 64- M3x6 DIN7991 (x12) |
| 22- Ball 6mm (x2) | 65- Spring 2 (x2) |
| 23- SL-23. Slider (x1) | 66- M4x10 DIN912 (x1) |
| 24- Plenum cap (x2) | 67- M3x8 ISO7380-2 (x2) |
| 25- SL-25. Cocking handle screw (x1) | 68- O-ring ID 6x1 NBR70 (x1) |
| 26- SL-26. P-3 Hammer (x1) | 69- Gauss spring (x1) |
| 27- Ball detent (x2) | 70- SL-70. Cheek riser (x1) |
| 28- M4x10 DIN913 Plastic tip (x1) | 71- SL-71. Valve seat (x1) |
| 29- M5x4 DIN913 (x5) | 72- SL-72. Port plug (x1) |
| 30- Locking screw spacer (x1) | 73- M4x10 DIN7991 (x4) |
| 31- Pusher guide (x1) | 74- O-ring ID 7x1.5 NBR70 (x1) |
| 32.A-32.B-32.C-32.D Pellet pusher .22 (x1) | 75- O-ring ID 5x1 NBR70 (x1) |
| 33- 33-3. Valve pin nut (x1) | 76- O-ring ID 6x1 NBR70 RED (x1) |
| 34- 34-3. Valve pin P-3 (x1) | 77- O-ring ID 17x2 NBR70 (x1) |
| 35- 35-3. Valve seal Prophet (x1) | 78- O-ring ID 20x2.5 NBR70 (x2) |
| 36- 36-3. Valve cylinder (x1) | 79- O-ring ID 12x1.5 NBR70 (x3) |
| 37- SL-37-2. Connecting tube (x1) | 80- O-ring ID 3x2 NBR70 (x2) |
| 38- SL-37-1. Retaining tube (x1) | 81- O-ring ID 10x1.5 NBR70 (x1) |
| 39- MA4x30 DIN7991 (x1) | 82- O-ring ID 5x2 NBR70 (x1) |
| 40- M5x5 DIN913 (x2) | 83- O-ring ID 6x1.5 NBR90 (x1) |
| 41- Trigger arm (x1) | |
| 42- Clevis (x1) | |
| 43- Trigger link rod (x1) | |
| 44- M4x4 DIN913 (x3) | |
| 45- Trigger sear (x1) | |
| 46- SL-46. Trigger pivot sear (x1) |
